MO-170-505-0001: Regen Motors (36 Volts @ 300 Amp 10.5 Peak HP Stock Controller)
MO-170-505-0001: Regen Motors (36 Volts @ 300 Amp 10.5 Peak HP Stock Controller)

Price: $480.00


Free Shipping
Product Code: MO-170-505-0001
Qty:

Description


PRODUCT DESCRIPTION

The 170-505-0001 is a high-performing regen motor. It is compatible with 36-Volt PDS/DCS and 48-Volt TXT models of EZGO vehicles. The 19-tooth motor reaches a speed of 14 mph with 10% more torque at 36 V, while the maximum power is 10.5 hp (7.7 kW). The 170-505-0001 motor is compatible with programmable controllers as noted by the manufacturer.


The 170-505-0001 motor can be purchased at Cloud Electric, your one-stop shop for all your EV needs. For more questions regarding D&D motors, reach out to us and we would gladly help. CE is the leading distributor of these components in North America and we deliver informative product descriptions, great pricing, and speedy shipping.


SPECIFICATIONS

COMPATIBLE MAKE

EZGO

36 V: PDS/DCS

48 V: TXT

TYPE

Regen

VOLTAGE

36 V

MAXIMUM POWER

10.5 hp (7.7 kW).

MAXIMUM SPEED

14 mph

SPLINES

19-Tooth

OPERATING VOLTAGE

-4.5 to 24 Volts

OPERATING TEMPERATURE

-20 to 85 deg. C

MOTOR LENGTH

9.1 inches

INSULATION RATING

Class H


PRODUCT DESIGN


MORE ABOUT D&D MOTORS

Some points to remember:

  1. Golf cart motors from D&D work on 36 V and 48 V models.

  2. Save an image of the motor wiring before removing it. Then use it as a reference since the replacement motor will be installed similarly.

  3. They have series and regen motors for golf carts. Check the field coils to know which type your cart has. A regen motor has round wires, while a series type has flat wires.

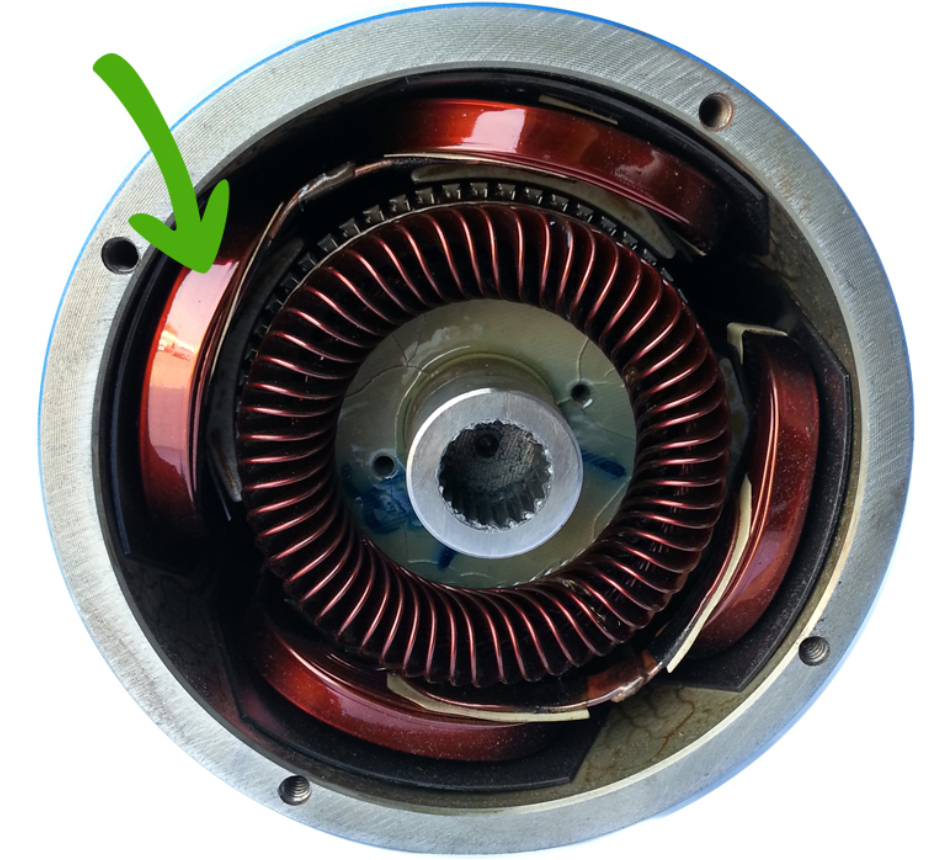

Regen Type

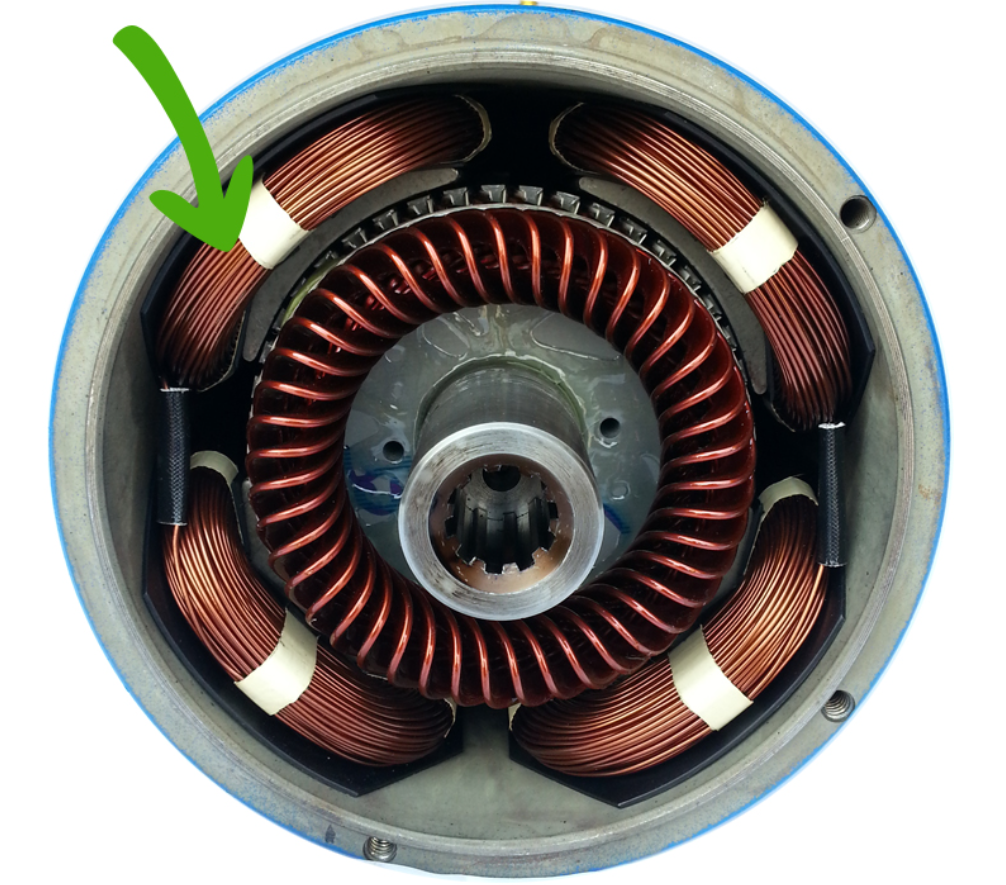

Series Type
