PRODUCT DESCRIPTION

The 170-504-0002 is a high-torque and high-speed regen motor. It is a compatible motor for older Yamaha axles and Club Cars. The 10-tooth motor reaches a speed of 21 mph with 40% more torque at 48 V, while the maximum power is 12.8 hp (9.4 kW).

The 170-504-0002 motor can be purchased at Cloud Electric, your one-stop shop for all your EV needs. For more questions regarding D&D motors, reach out to us. CE is the leading distributor of these components in North America and we deliver informative product descriptions, great pricing, and speedy shipping.

SPECIFICATIONS

PRODUCT DESIGN

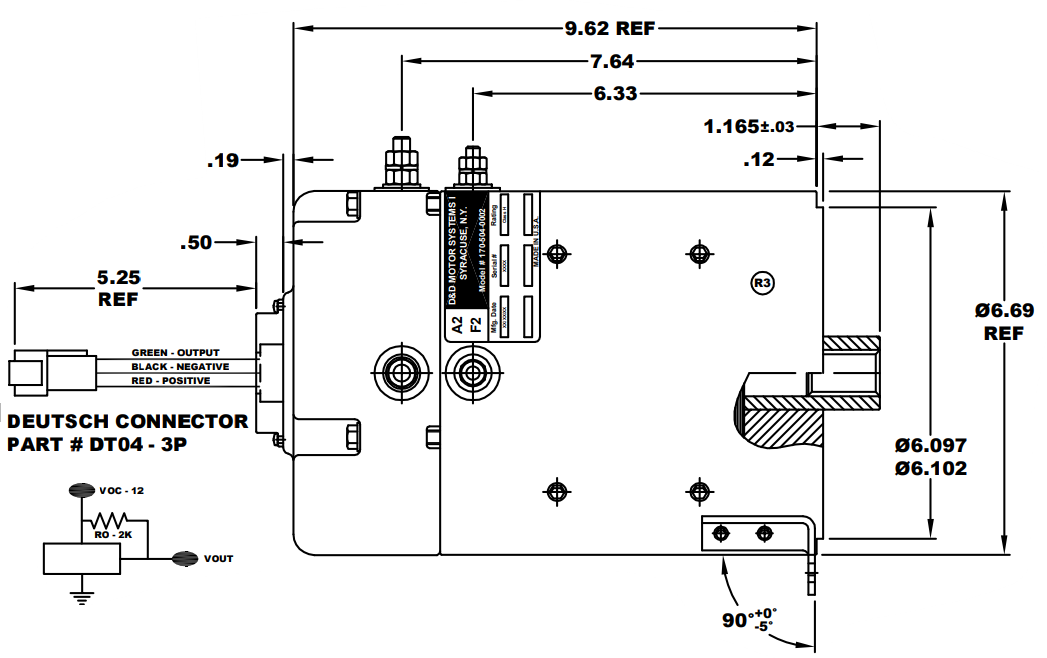

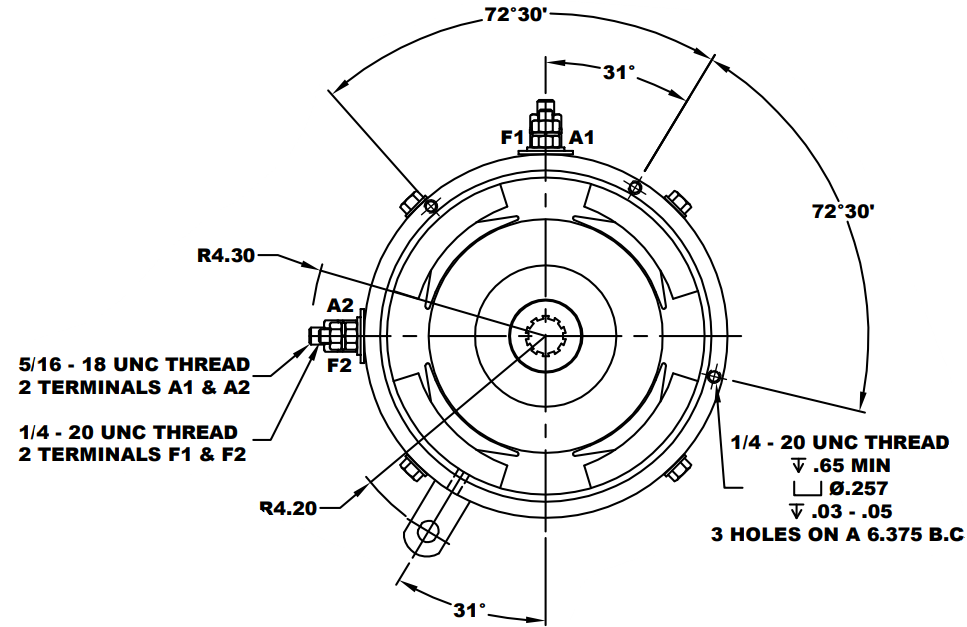

Here is a mechanical diagram of the motor:

MORE ABOUT D&D MOTORS

Some points to remember:

1. Golf cart motors from D&D work on 36 V and 48 V models.

2. Save an image of the motor wiring before removing it. Then use it as a reference since the replacement motor will be installed similarly.

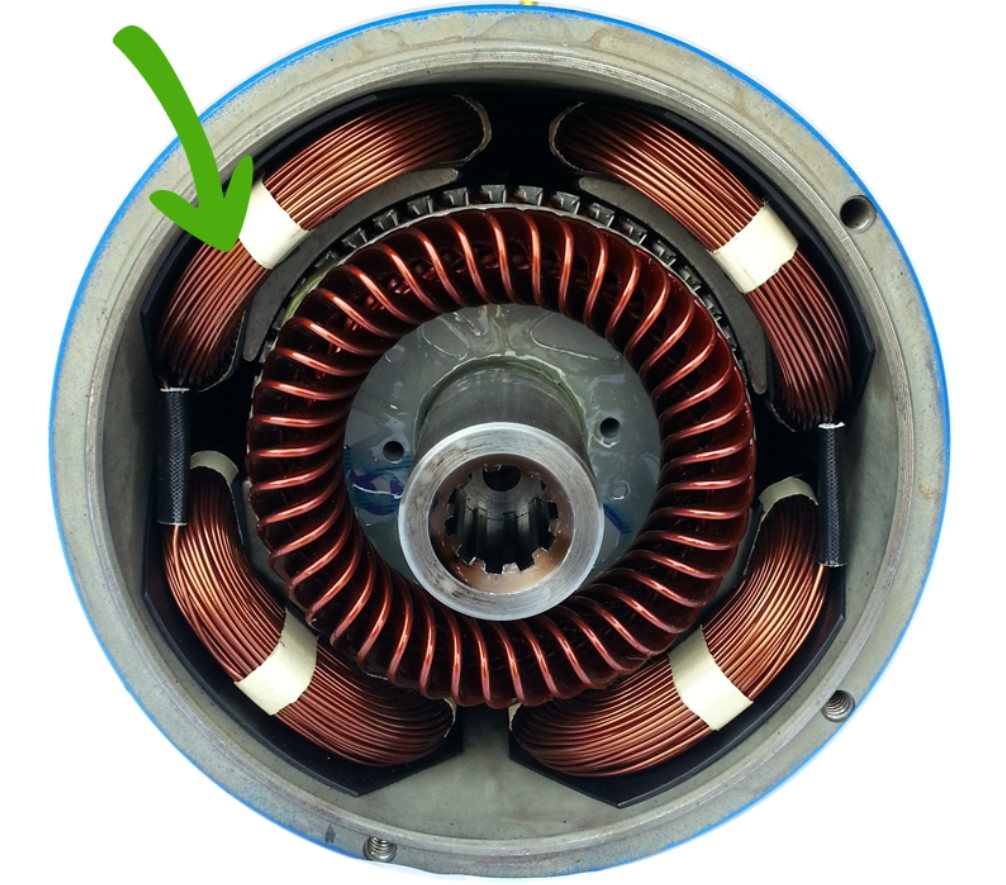

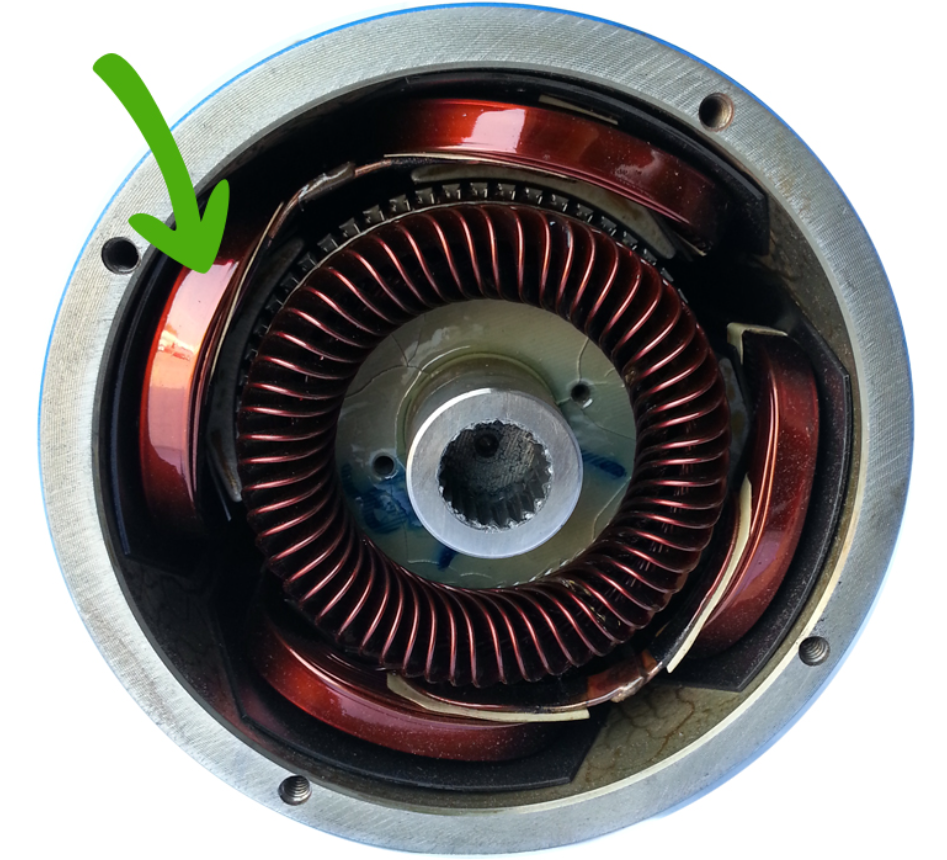

3. They have series and regen motors for golf carts. Check the field coils to know which type your cart has. A regen motor has round wires, while a series type has flat wires.
