MO-170-504-0001C: Regen Motors (36 Volts @ 300 Amp 12.8 Peak HP Stock Controller)

Home > Electric Motors > D&D Motors > Sep/Ex Motors >

Price: $552.00

Product Code: MO-170-504-0001C

Qty:

Description

PRODUCT DESCRIPTION

The 170-504-0001C is a high-performing regen motor. It is a replacement motor for EZGO, Yamaha, Melex vehicles. The 19-tooth motor reaches a speed of 18 mph with 40% more torque at 36 V, while the maximum power is 12.8 hp (9.4 kW).

The 170-504-0001C motor can be purchased at Cloud Electric, your one-stop shop for all your EV needs. For more questions regarding D&D motors, reach out to us. CE is the leading distributor of these components in North America and we deliver informative product descriptions, great pricing, and speedy shipping.

SPECIFICATIONS

COMPATIBLE MAKE	EZGO (DCS/PDS and 48V TXT) Yamaha (G29, G22, and G19) Melex with Dana H12 Axle
TYPE	Regen
VOLTAGE	36/48 V
MAXIMUM POWER	12.8 hp (9.4 kW)
MAXIMUM SPEED	22 mph
SPLINES	19-Tooth Female Splines
OPERATING VOLTAGE	-4.5 to 24 Volts
OPERATING TEMPERATURE	-20 to 85 deg. C
MOTOR LENGTH	9.8 inches
INSULATION RATING	Class H

PRODUCT DESIGN

Here is a mechanical diagram of the motor:

MORE ABOUT D&D MOTORS

Some points to remember:

Golf cart motors from D&D work on 36 V and 48 V models.
Save an image of the motor wiring before removing it. Then use it as a reference since the replacement motor will be installed similarly.

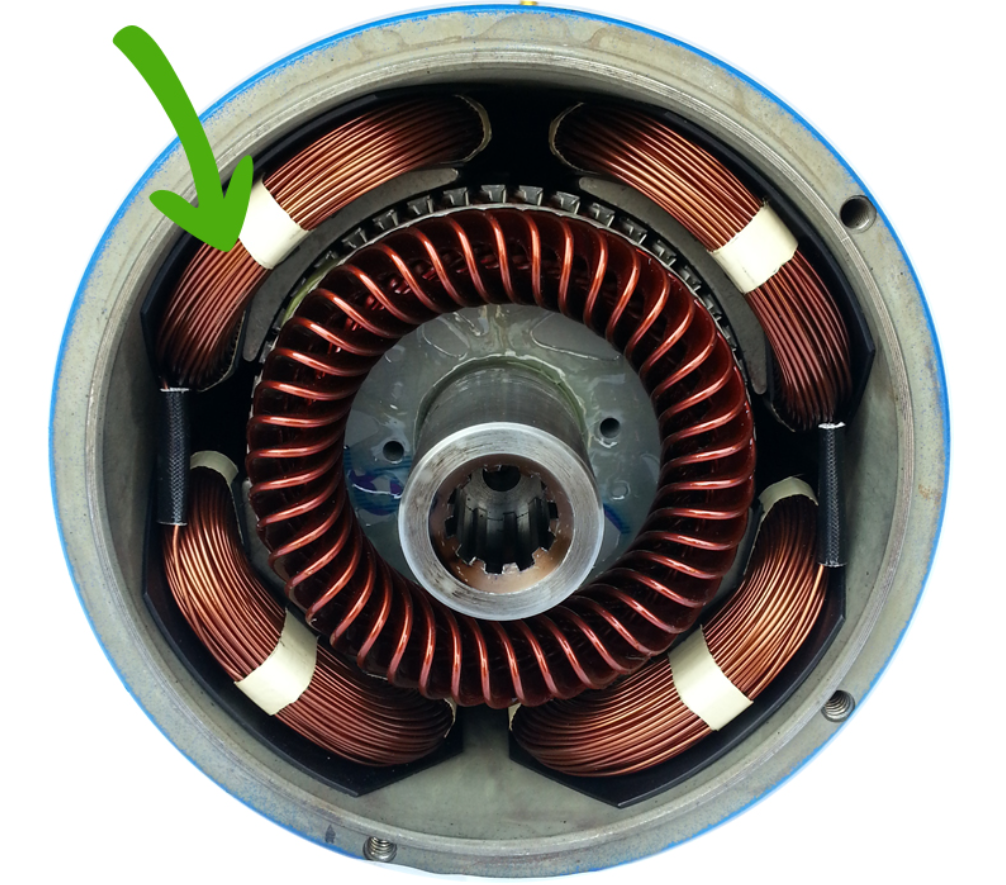

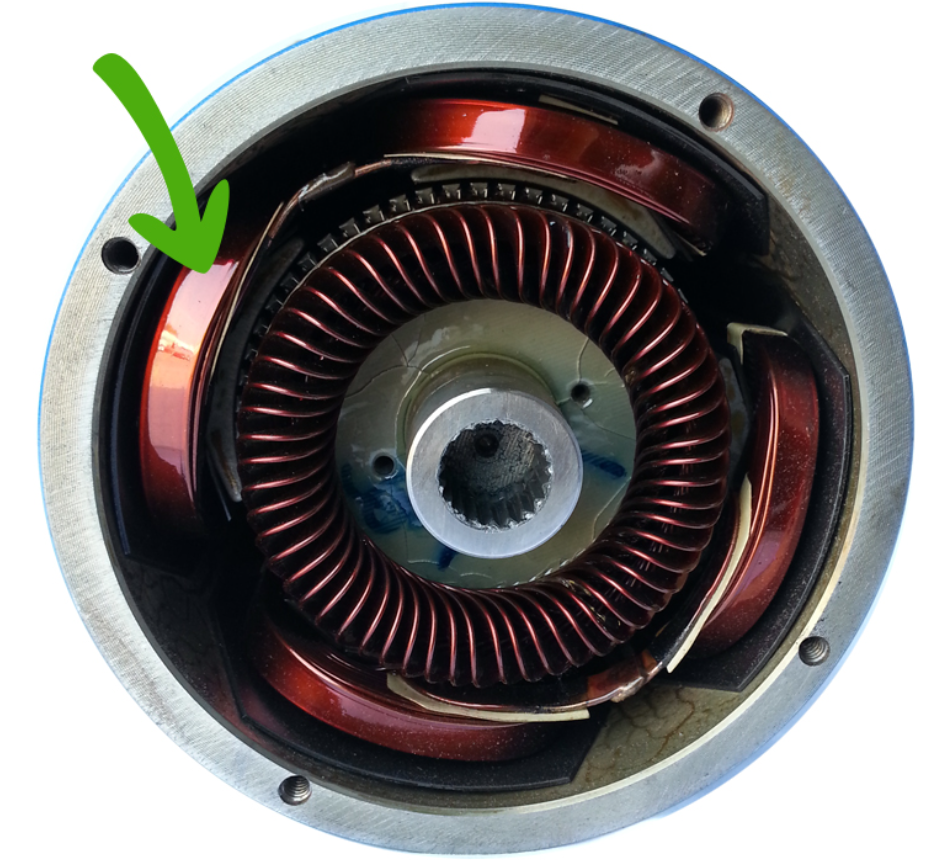

They have series and regen motors for golf carts. Check the field coils to know which type your cart has. A regen motor has round wires, while a series type has flat wires.

Regen Type	Series Type
