PRODUCT DESCRIPTION

The 170-016-0001 is a high-torque and high-speed series motor. It is a replacement motor compatible with EZGO vehicles. The 19-tooth motor reaches a speed of 20 mph with 20% more torque at 36 V, while the maximum power is 9 hp (6.7 kW) or 11.7 hp (8.6 kW).

The 170-016-0001 motor can be purchased at Cloud Electric, your one-stop shop for all your EV needs. For more questions regarding D&D motors, reach out to us and we would gladly help. CE is the leading distributor of these components in North America and we deliver informative product descriptions, great pricing, and speedy shipping.

SPECIFICATIONS

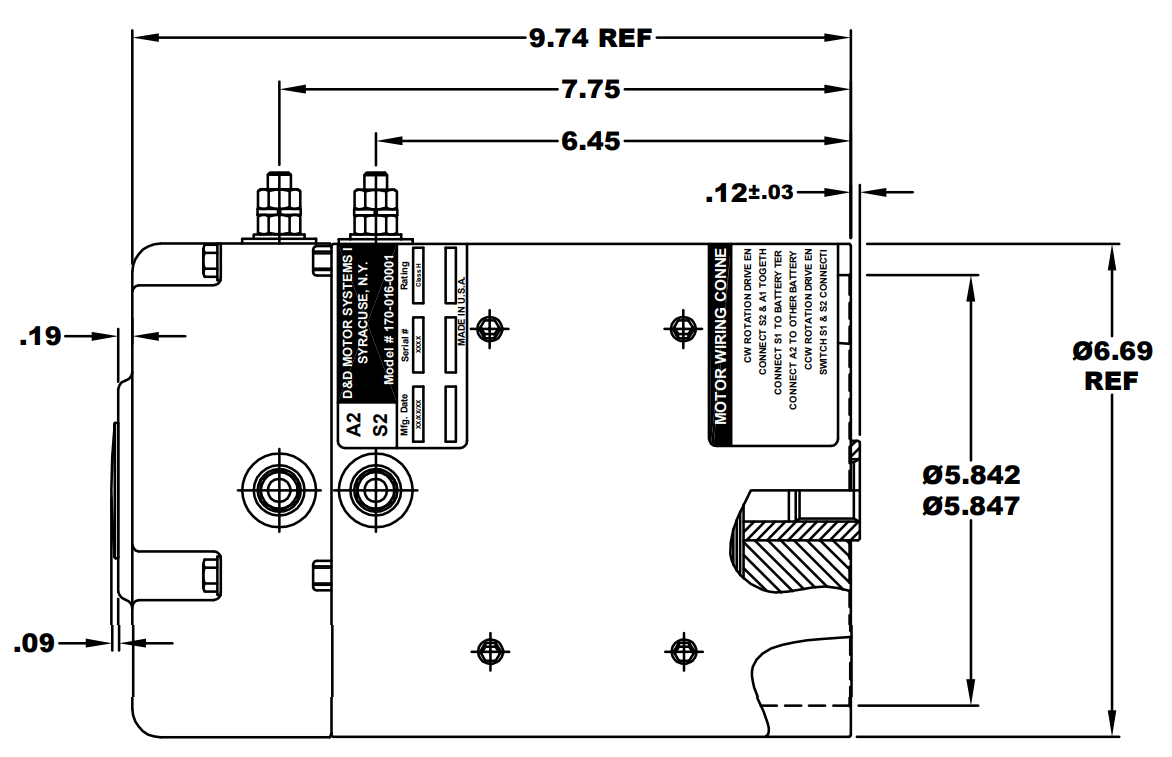

PRODUCT DESIGN

MORE ABOUT D&D MOTORS

Some points to remember:

1. Golf cart motors from D&D work on 36 V and 48 V models.

2. Save an image of the motor wiring before removing it. Then use it as a reference since the replacement motor will be installed similarly.

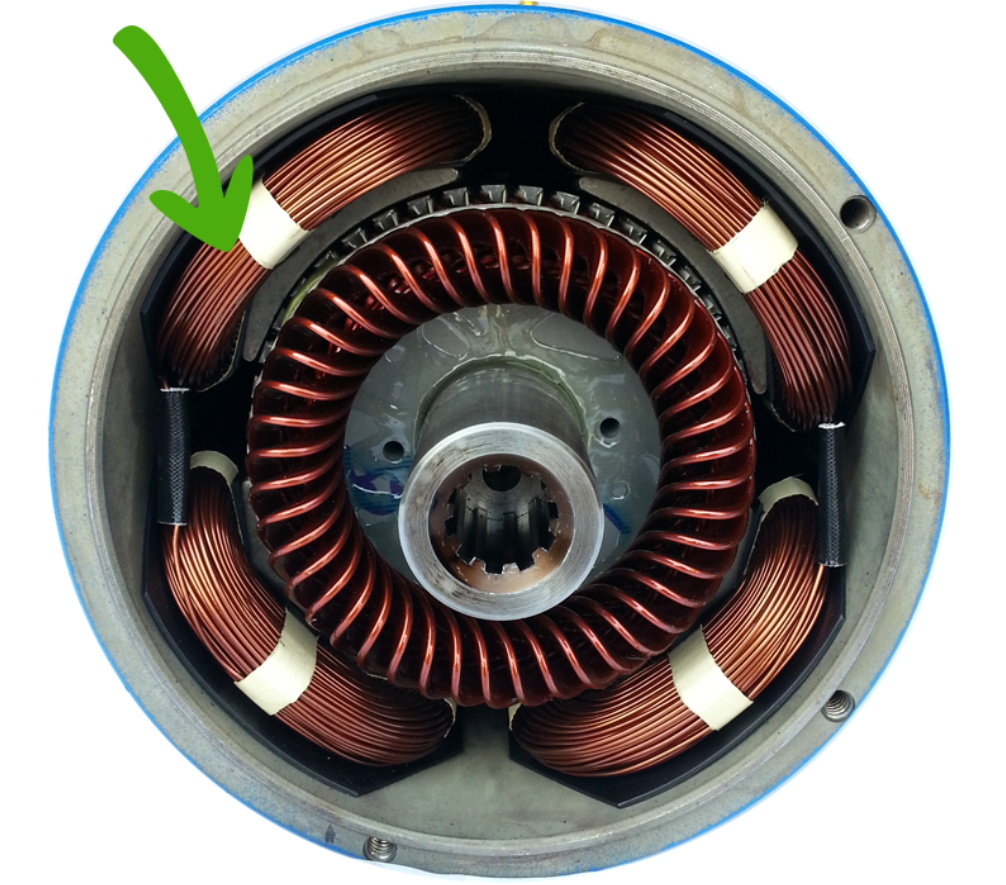

3. They have series and regen motors for golf carts. Check the field coils to know which type your cart has. A regen motor has round wires, while a series type has flat wires.
