MO-170-013-0001: Series Motors (36 Volts @ 275 Amp 8.8/12.4 Peak HP Stock Controller)
MO-170-013-0001: Series Motors (36 Volts @ 275 Amp 8.8/12.4 Peak HP Stock Controller)

Price: $588.00


Free Shipping
Product Code: MO-170-013-0001
Qty:

Description


PRODUCT DESCRIPTION

The 170-013-0001 is a high-torque and high-speed series motor. It is compatible with 1988 and newer non-DCS and PDC models of EZGO, Yamaha, and Melex vehicles. The 19-tooth motor reaches a speed of 16 mph with 40% more torque at 36 V, while the maximum power is 8.8 hp (6.5 kW) or 12.4 hp (9.1 kW). Utilizing motor 170-013-0001 requires a controller upgrade as noted by the manufacturer.


The 170-013-0001 motor can be purchased at Cloud Electric, your one-stop shop for all your EV needs. For more questions regarding D&D motors, reach out to us and we would gladly help. CE is the leading distributor of these components in North America and we deliver informative product descriptions, great pricing, and speedy shipping.


SPECIFICATIONS

COMPATIBLE MAKE

1988 and New EZGO (non-DCS and PDS Models) & others

Yamaha

Melex with Dana H12 Axle

TYPE

Series

VOLTAGE

36/48 V

MAXIMUM POWER

8.8 hp (6.5 kW) or 12.4 hp (9.1 kW)

MAXIMUM SPEED

16 mph

SPLINES

19-Tooth

MOTOR LENGTH

10.6 inches

INSULATION RATING

Class H


PRODUCT DESIGN


MORE ABOUT D&D MOTORS

Some points to remember:

  1. Golf cart motors from D&D work on 36 V and 48 V models.

  2. Save an image of the motor wiring before removing it. Then use it as a reference since the replacement motor will be installed similarly.

  3. They have series and regen motors for golf carts. Check the field coils to know which type your cart has. A regen motor has round wires, while a series type has flat wires.

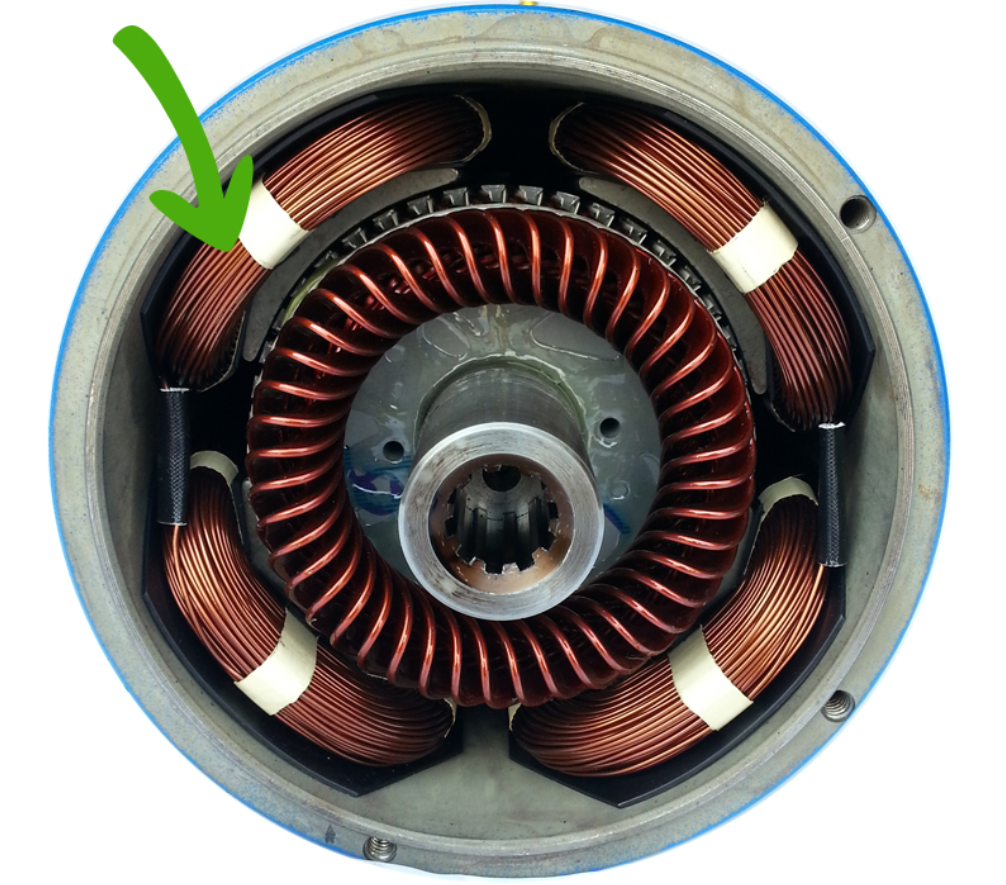

Regen Type

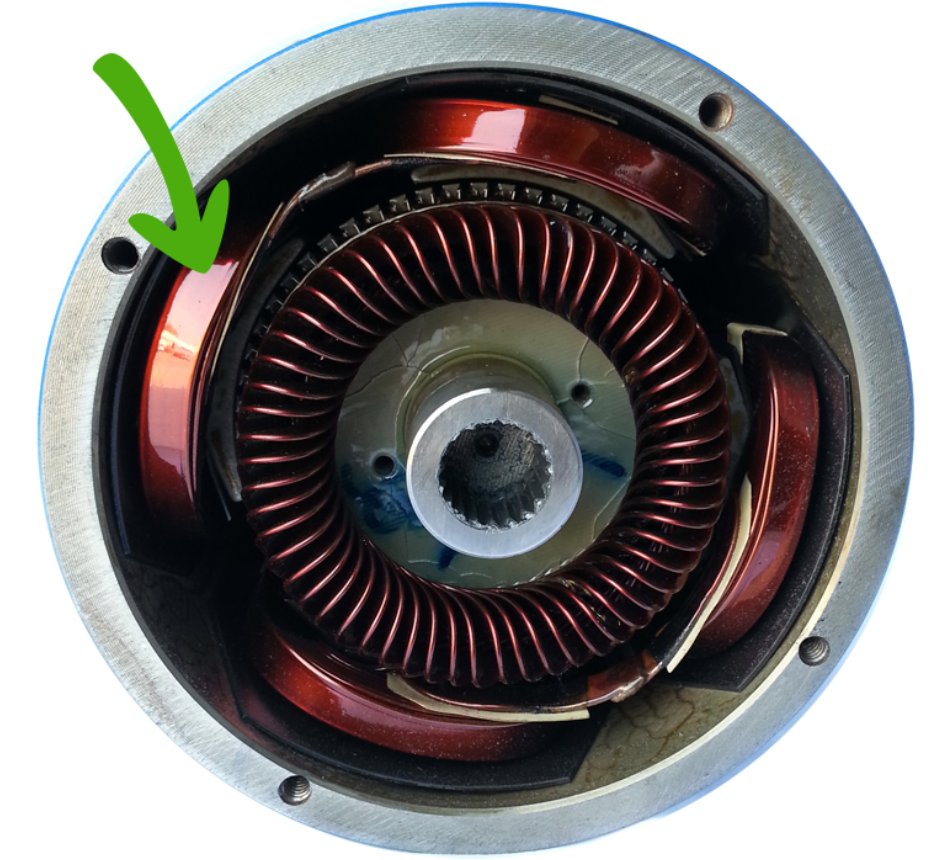

Series Type
