Kelly-Mars-4201 : Mars 4201(Etek Comparable) PMSM/BLDC Motor

Home > Electric Motors >

Alternative Views:

Price: $499.00

Availability:: Drop Ships - 1-7 Days from supplier
Product Code: KELLY-MARS-4201

Qty:

Description

Manuals & Diagram

PRODUCT DESCRIPTION

The Mars 4201 from Kelly Controller is a brushless Permanent Magnet Synchronous DC motor with an axial air gap. It is meant to last long and they do not require brush maintenance. This motor perfectly matches the Kelly KLS7245N motor.

This motor can now be purchased here in Cloud Electric, your one-stop shop for all your electric components needs. Cloud Electric is a leading distributor of electronic components in North America. We take pride in our informative product descriptions, pricing, and shipping speed.

SPECIFICATIONS

VOLTAGE RANGE	24-72 VDC, ideal for 72 VDC
EFFICIENCY	90%
POWER SUPPLY	3-phase, Y-connection
CONTINUOUS CURRENT	85 Amps @ 72 VDC
MAXIMUM CURRENT	300 Amps

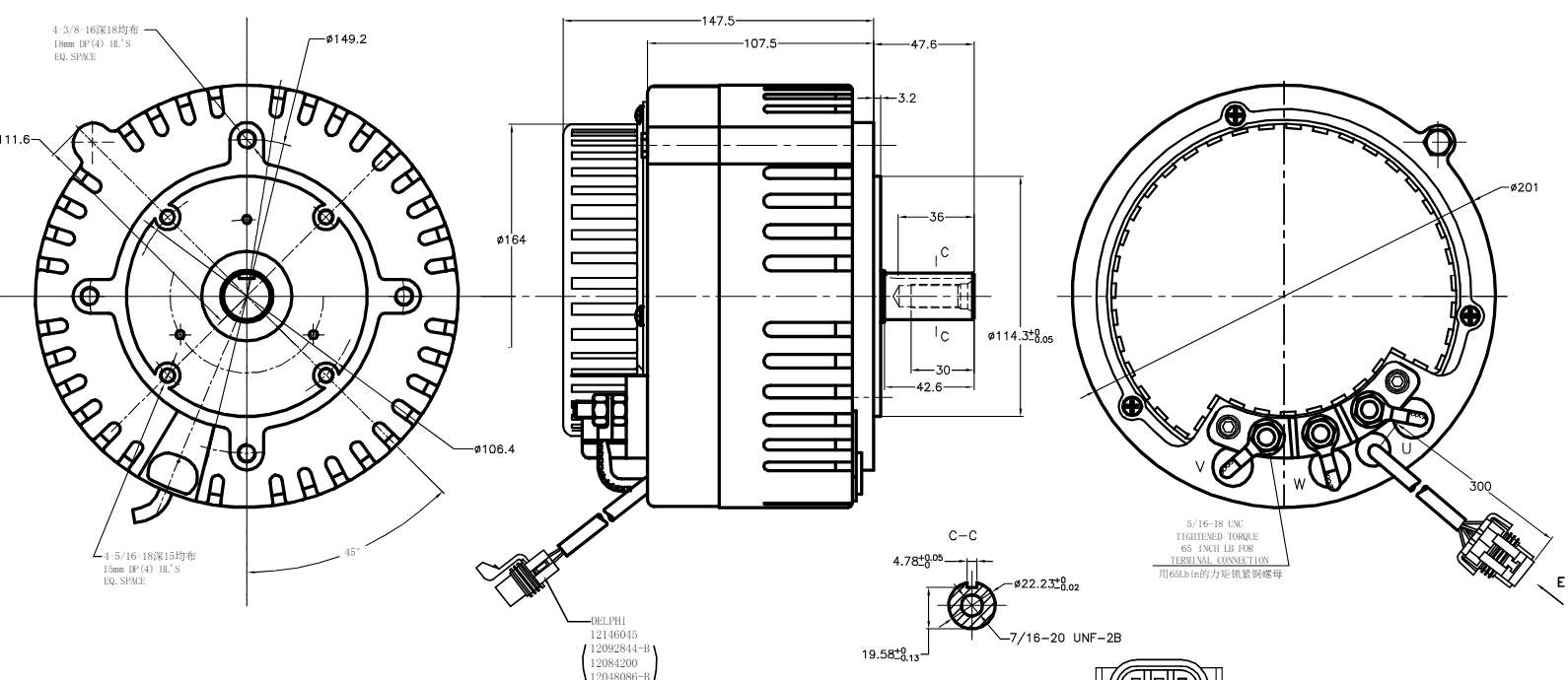

MECHANICAL DESIGN

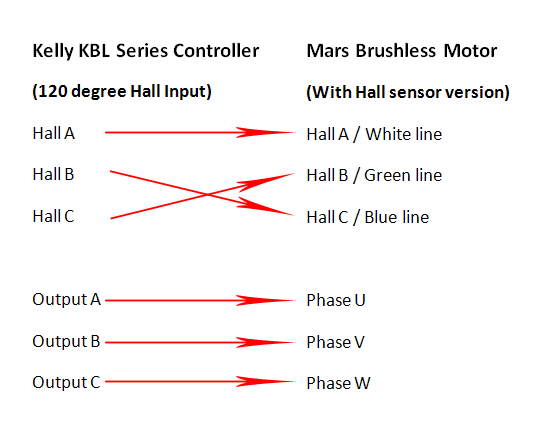

WIRING CONFIGURATION
