Curtis 933/M128 933M128

Cross Reference:

CL7007501, CT933/M128, CT933-M128, HU3026851, YP150022749, YP1500227-49, YP220012029, YP2200120-29
7007501, 933/M128, 933-M128, 3026851, 150022749, 1500227-49, 220012029, 2200120-29

Please select the preferred condition for Curtis 933/M128 933M128 if options are available.

Remanufactured OEM Curtis 933/M128 933M128 will ship to your location in 1-3 days. Stock rebuilt items will generally ship same day unless prior testing is required. All rebuilt items are subjected to a core charge. The core charge will be refunded once we receive the core in one of our warehouse locations.

Repair Service for Curtis 933/M128 933M128 will include a complementary pick up from anywhere in USA (48 contiguous states). We can schedule a pick up the same day of order. The repair process typically takes 3-5 business days. But can be completed sooner if parts are readily available. (this is usually the case for top selling items)

For more information, please call us at 1844-808-5280. This unit comes with 6 Months warranty up-gradable to 36 months.

PRODUCT DESCRIPTION

The Curtis 933/M128 is a controller and a fuel gage for the battery. It protects the battery against deep discharge, therefore, prolonging the life of the component. Its features include adjustable reset, lift lockout, and discharge settings. It is a highly reliable controller as it is capable of operating despite harsh conditions and has a high-quality aluminum material used for hardware.

Curtis 933/M128 is a 128-volt model. Some of the key features of the controller are its lockout feature, battery detection and recognition, and its non-volatile memory called EEPROM, among others. It also has dual voltage capabilities and compatibility with Model 1156 as its optional features.

The controller can now be purchased here in Cloud Electric, your one-stop shop for all your electric component needs. Cloud Electric is a leading distributor of electronic components in North America. We take pride in our informative product descriptions, pricing, and shipping speed.

SPECIFICATIONS

VOLTAGE	128 V
STANDARD LEVEL
Reset	Factory Set: 2.09 VPC Range: 2-2.18 VPC
Discharge	Factory Set: 1.73 VPC Range: 1.56-1.82 VPC
TEMPERATURE
Storage	-55°C to 85°C
Operating	-20°C to 85°C

PHYSICAL SPECIFICATIONS

DIMENSIONS	Controller
Length	113 mm
Width	113 mm
Depth	53 mm
DIMENSIONS	Battery Indicator
Diameter	58 mm
Depth	55 mm

FEATURES

Features	Purpose
Red LED	Notifies the user for energy reverse at the discharge of 75%
Lift Lockout @ 80% discharge	The lift coil circuit is locked out and comes with optional warning signals located on other vehicles The lift is finished before lockout when discharge is reached during lift
Charge Detection	This feature recognizes whether the battery is improperly charged
EEPROM	Utilizes a non-volatile memory allows maintaining state-of-charge even after removal from a power source
Reset and Discharge Level	Both levels indicating lockout point are adjustable
Easy Installation	Mounting the device to a vehicle is easy. The following are the tools required: Controller: 2 pieces of ¼-inch bolts to the body of the vehicle Gage: a 2-1/16-inch round cut out to the dash

OPTIONAL FEATURES

Compatibility with Model 1156: It is an LED gage with 10 bars that flash to signify a low fuel level
Dual Voltage: There are two voltages the user can choose from, which can be changed using jumpers
AV: Installable to any parts of the circuit of the lift coil. It has a maximum resistive load capacity of 150 VA on the secluded NC relay

The AX output is close to the AW output, however, it closes at lockout and with NO relay

High Voltage Reset: While charging, the battery remains connected to the controller
Dual Voltage-Automatic Ranging: Adjusts automatically according to the correct system voltage

DIMENSIONS

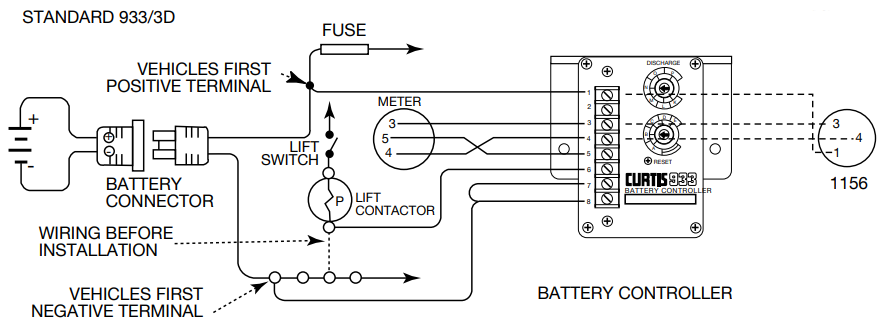

WIRING DIAGRAM
