PRODUCT DESCRIPTION
The Navitas EZGO ITS Conversion Kit is one of the DC Controller Packages developed and manufactured by Navitas Vehicle System. It is a 440A conversion kit compatible with EZGO ITS vehicles operating with a DC Shunt Wound Motor. The kit is only compatible with E-Z-GO vehicles utilizing an ITS throttle and it is composed of a 440A controller, an On-The-Fly (OTF) Programmer, and a TSX harness.
The Navitas EZGO ITS kit can now be purchased in Cloud Electric, your one-stop shop for all your electric component needs and one of the leading distributors in North America. Our store takes pride in the service we provide such as reliable product information, lowest possible prices, and shipping speed. The most in demand products necessary for industrial vehicles ranging from boom trucks to golf carts are also available in the store.
Kit Inclusions:
TSX Controller (48V, 440A)
On-The-Fly Programmer
TSX Harness

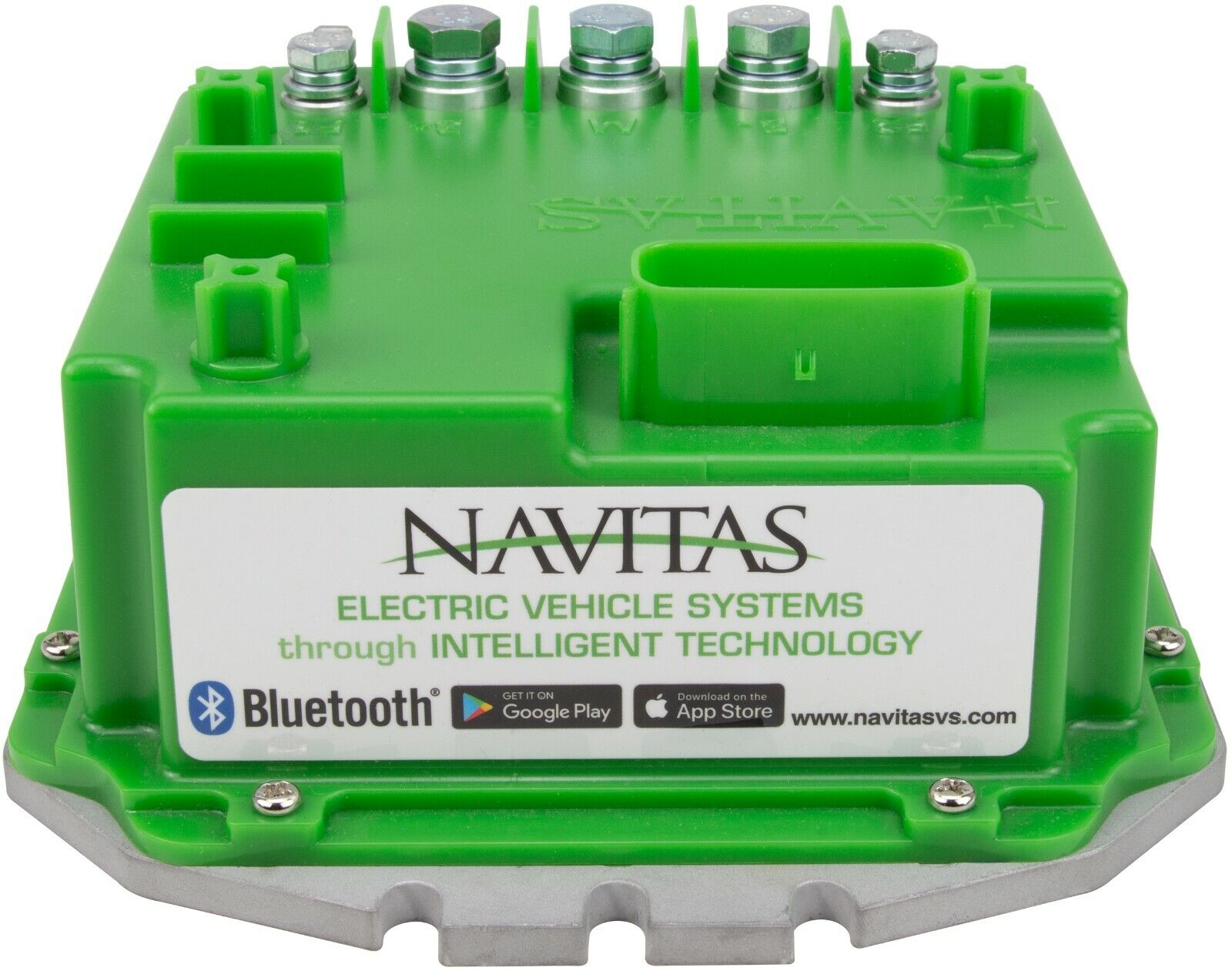

TSX3.0 Controller:
The TSX controller is a power MOSFET technology that is fully-programmable allowing flexible motor control. This kit is specifically equipped with a 48V, 440A TSX3.0 controller.
Some of the controller features include regenerative braking, speed limiting, and various safety features. It is also capable of communicating with other bluetooth, RS232, and CAN Bus-enabled devices allowing changing the vehicle settings virtually.
The controller specification is tabulated below:
|
Type:
|
TSX3.0 Controller
|
|
Motor:
|
DC Shunt Wound Motor
|
|
Model:
|
440 Amp
|
|
Battery Voltage (V)
|
48
|
|
Field Current (A)
|
50, Peak
|
The controller features are listed below:
Capable of recapturing kinetic energy through regenerative braking
A voltage-controlled power MOSFET device
Allows safety through speed-limiting
Sensor input
TSX Harness

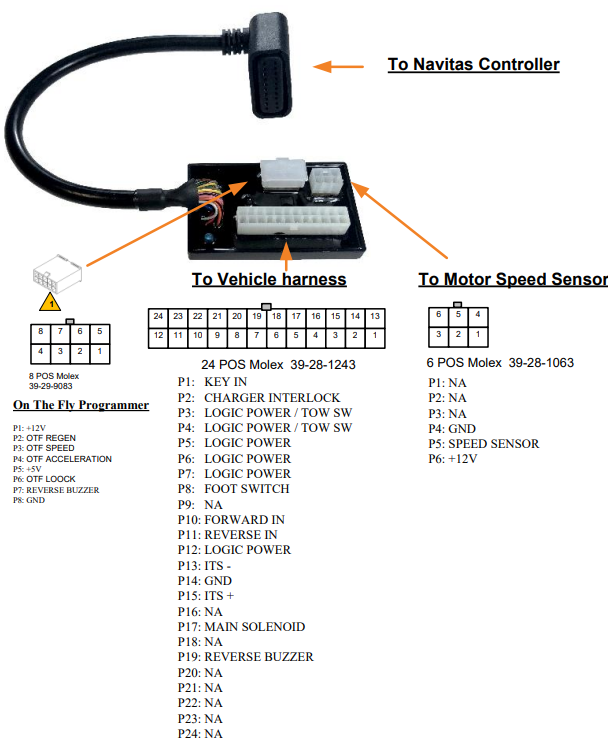

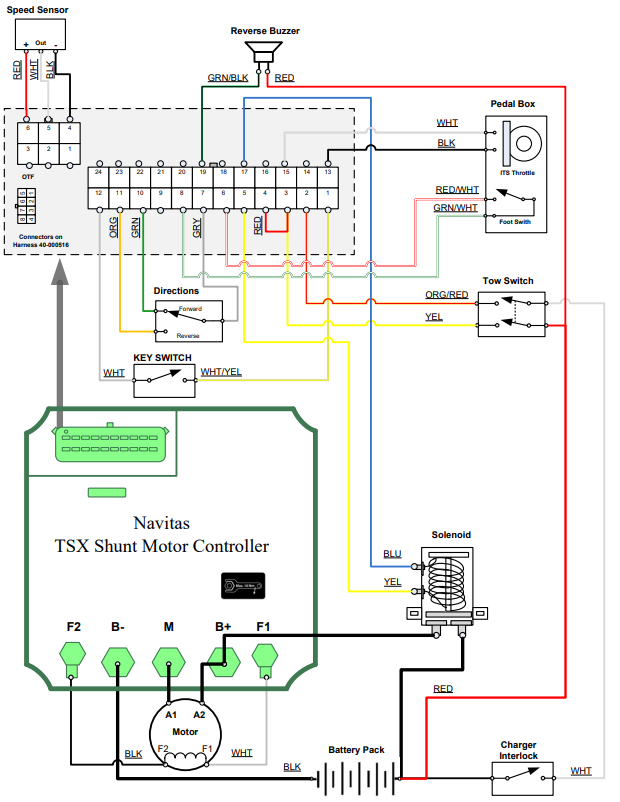

The TSX harness included in the kit is designed for 48V ITS models of E-Z-GO utilizing Curtis 1264/1268. The parts of the TSX harness are shown below together with the wiring diagram.
On-The-Fly Programmer
An OTF Programmer uses a programming style that allows live coding during run time allowing the driver to control the vehicle while operating.
Parts of the On-The Fly Programmer:
The OTF programmer has 5 parts—3 switch knobs, a key lock, and an LED light indicator
Switches: The switch knobs are for Speed, Regen, and Acceleration.
The SPEED switch functions as a speed and range controller. When limiting the speed to a lower rate, the vehicle will have a longer runtime.
The REGEN switch allows braking control both for safety and its recharging capabilities.
The ACCEL switch allows acceleration control to ensure that the vehicle is safe from sudden unintended acceleration.
Key Lock: A safety feature that ensures that the car rejects input unless unlocked.
STATUS LED Light: Indicates the condition of the vehicle providing system diagnostics to alert the driver.
