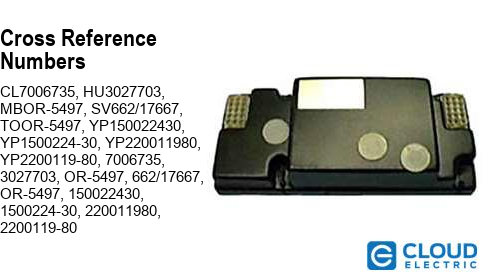

Cross Reference:
CL7006735, HU3027703, MBOR-5497, SV662/17667, TOOR-5497, YP150022430, YP1500224-30, YP220011980, YP2200119-80
7006735, 3027703, OR-5497, 662/17667, OR-5497, 150022430, 1500224-30, 220011980, 2200119-80
Please select the preferred condition for Sevcon MC G Logic Card 66217667 if options are available.
Remanufactured OEM Sevcon MC G Logic Card 66217667 will ship to your location in 1-3 days. Stock rebuilt items will generally ship same day unless prior testing is required. All rebuilt items are subjected to a core charge. The core charge will be refunded once we receive the core in one of our warehouse locations.
Repair Service for Sevcon MC G Logic Card 66217667 will include a complementary pick up from anywhere in USA (48 contiguous states). We can schedule a pick up the same day of order. The repair process typically takes 3-5 business days. But can be completed sooner if parts are readily available. (this is usually the case for top selling items)
For more information, please call us at 1844-808-5280. This unit comes with 6 Months warranty up-gradable to 36 months.
Sevcon MC G Logic Card 66217667
PRODUCT DESCRIPTION
The Sevcon MC G Logic Card 66217667 is a logic card used for MC ‘G’ controllers from Sevcon. An MC ‘G’ controller is a solid-state electronic speed controller allowing a DC source to supply power to the motor smoothly and avoid loss of power from other controls. The controller has features such as thermal cutback, polarity protection, and plug braking assist, among others. A logic card assists and allows all these functions.
The Sevcon 66217667 is a Customer Special OPTIONS model with embedded control functions and light current and can be controlled digitally and manually. It also has circuitry for anti-rollback, fail-safe, oscillation, accelerator shaping, current limit, bypass, field diversion, clamp, and sequence. The logic card varies depending on the controller it is used for. A more detailed controller specification is provided in the section below for parameters.
The Logic Card can now be purchased here in Cloud Electric, your one-stop shop for all your electric component needs. Cloud Electric is a leading distributor of electronic components in North America. We take pride in our informative product descriptions, pricing, and shipping speed.
PARAMETER SPECIFICATION
|
LOGIC UNIT
|
OPTIONS, Customer Special
|
|
OPERATING LIMIT
|
60 to 110 percent of the supply voltage
|
|
MOTOR VOLTAGE
|
|
|
|
4% of the supply
|
|
|
24V Model: 93% of Supply
80V Model: 97% of Supply
144V Model: 98% of Supply
|
|
BATTERY TYPE USED
|
Lead Acid
|
|
CONTROL TYPE
|
Pulse Width Modulation
Frequency Modulation
|
|
PWM (Minimum)
|
0.55 mS
|
|
NOMINAL PERIOD TIME
|
7 mS
|
|
MOTOR TYPE
|
Series Wound
Terminal: 3 or 4
|
|
OPERATING FREQUENCY
|
33 to 150 Hz
|
WIRING DIAGRAM
|
|
|
 |
|
 |
|
