Sevcon SC2000 Nissan Dual 63160011


Sevcon SC2000 Nissan Dual 63160011
0 Reviews
Price: $1,801.29

Price with Selected Options: $1,801.29


Product Code: 63160011


Condition*:
Remanufactured OEM ($1801.29) -

Repair Service ($1442.39)

Qty:

Description

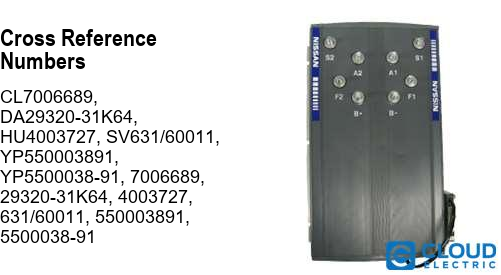

Cross Reference:

CL7006689, DA29320-31K64, HU4003727, SV631/60011, YP550003891, YP5500038-91
7006689, 29320-31K64, 4003727, 631/60011, 550003891, 5500038-91

Please select the preferred condition for Sevcon SC2000 Nissan Dual 63160011 if options are available.

Remanufactured OEM Sevcon SC2000 Nissan Dual 63160011 will ship to your location in 1-3 days. Stock rebuilt items will generally ship same day unless prior testing is required. All rebuilt items are subjected to a core charge. The core charge will be refunded once we receive the core in one of our warehouse locations.

Repair Service for Sevcon SC2000 Nissan Dual 63160011 will include a complementary pick up from anywhere in USA (48 contiguous states). We can schedule a pick up the same day of order. The repair process typically takes 3-5 business days. But can be completed sooner if parts are readily available. (this is usually the case for top selling items)

For more information, please call us at 1844-808-5280. This unit comes with 6 Months warranty up-gradable to 36 months.




Sevcon SC2000 Nissan Dual 63160011

PRODUCT NUMBER

The Sevcon 63160011 belongs to the Sevcon SC2000 controller family. This controller has embedded features for fault detection, safety, and convenience. Some optional features are also available to match the demand according to the needs of the user. A separate calibration unit compatible with the controller is also available for manual and digital adjustment of the parameters of the controller.


Technically, Sevcon 63160011 is a controller model for Nissan with a dual motor. The controller is operating at a frequency of 15.7 kHz allowing noiseless operation. It is designed with compatible power terminals, high-quality microprocessors, compact packaging, and series-wound DC motor compatibility.


The controller can now be purchased here in Cloud Electric, your one-stop shop for all your electric component needs. Cloud Electric is a leading distributor of electronic components in North America. We take pride in our informative product descriptions, pricing, and shipping speed.


SPECIFICATIONS

CONTROLLER TYPE

For Nissan Dual Motor

MODEL NUMBER

SC2xxx

SWITCHING FREQUENCY

15.7 kHz



PHYSICAL SPECIFICATION

PRODUCT WEIGHT

Model dependent

CONTROLLER DIMENSIONS


  • Length

Model dependent

  • Width

Model dependent

  • Height

Model dependent

INGRESS PROTECTION

IP34

HUMIDITY

95%

AMBIENT TEMPERATURE


  • Operating

-30 °C to 40 °C

  • Storage

-40 °C to 70 °C


LIST OF FEATURES

  • Microprocessing control unit

  • High-frequency operation

  • Safe start due to Static Return to Off

  • Embedded watchdog monitors internal operations

  • Thermal Compensation

  • Under- and over-voltage protection

  • Internal fault detention

  • Adjustable parameters

  • Bypass

  • Regenerative and plug braking

  • Power steering

  • Field weakening

  • Seat switch timer

  • Dashboard display


    DIMENSIONS
