Sevcon 24/48V 400A Pump Controller 63141080

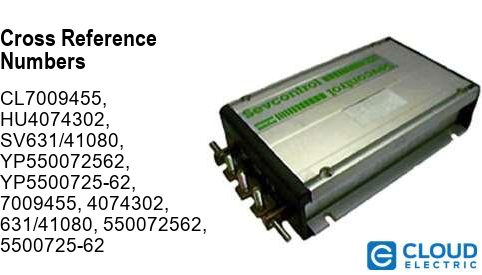

Cross Reference:

CL7009455, HU4074302, SV631/41080, YP550072562, YP5500725-62
7009455, 4074302, 631/41080, 550072562, 5500725-62

Please select the preferred condition for Sevcon 24/48V 400A Pump Controller 63141080 if options are available.

Remanufactured OEM Sevcon 24/48V 400A Pump Controller 63141080 will ship to your location in 1-3 days. Stock rebuilt items will generally ship same day unless prior testing is required. All rebuilt items are subjected to a core charge. The core charge will be refunded once we receive the core in one of our warehouse locations.

Repair Service for Sevcon 24/48V 400A Pump Controller 63141080 will include a complementary pick up from anywhere in USA (48 contiguous states). We can schedule a pick up the same day of order. The repair process typically takes 3-5 business days. But can be completed sooner if parts are readily available. (this is usually the case for top selling items)

For more information, please call us at 1844-808-5280. This unit comes with 6 Months warranty up-gradable to 36 months.

PRODUCT DESCRIPTION

The Sevcon 63141080 is a pump controller from Sevcon. It has the latest microprocessor and MOSFET technology, which offer advanced features. The pump controllers are utilized for electric vehicles with hydraulic pump motors. The controller is capable of operating silently, increasing the life of the components in the system, and improving economically due to its ability to reduce maintenance and hardware costs.

Sevcon 63141080 is a 24/48-volt Options model with a 2-minute current rating of 400 amperes. There are numerous functionalities offered due to its microprocessor software. Some of its features are cutback functions, system protection through intricate circuitry, and high-quality hardware. Aside from the embedded features, there are optional features that can be added according to the demand for the controller. A calibration unit is optional allowing the operator to adjust parameters digitally. A more detailed specification is shown below. The pump controller is almost similar to the traction controller but with added features fit for pump use.

The controller can now be purchased here in Cloud Electric, your one-stop shop for all your electric component needs. Cloud Electric is a leading distributor of electronic components in North America. We take pride in our informative product descriptions, pricing, and shipping speed.

SPECIFICATION

VOLTAGE	24/48 V
OPERATING FREQUENCY	200 Hz
AMBIENT TEMPERATURE (OPERATING)	-30 deg. C to 40 deg. C
AMBIENT TEMPERATURE (STORAGE)	-40 deg. C to 90 deg. C
MAXIMUM HUMIDITY	95%
CURRENT RATING
2 Minute	400 A
1 Hour	175 A
Bypass (OPTIONS only)	800 A

SPECIFICATION OF THE MECHANICAL DESIGN

DIMENSION
Length	283 mm
Width	140 mm
Height	63 mm

FEATURES

Features	Purpose
Packaging (Encapsulation)	Protects the controller and prevents product tampering
Failproof	The controller is equipped with premium software and hardware that helps in system protection through immediate fault detection and speedy counteraction
System Protection	Voltage, reverse polarity, input, rollback, and temperature protection are embedded to prevent runaway conditions
Static Return to OFF	The key switch can only be turned ON once the direction switch is set to NEUTRAL
Diagnostic LED	Informs the operator about the system diagnostics
Adjustor and Calibrator	A piece of equipment used to adjust parameters digitally
Hours Counter	65, 000 hours of controller pulsing time
Service Log	Records data experienced by the controller

OPTIONAL FEATURES

Bypass: Allows improved efficiency and speed. It also allows the controller to exceed the maximum current limit once the throttle is in the maximum position.
Belly Switch: Protects the vehicle from walkies, an EEC Directive
Field Weakening: Increases the top speed as the contactor reaches full throttle
Power Steer: Reduces the steering effort needed
Seat Switch: Allows seat adjustment for driver’s comfort
Electric Brake: Once the delay is set to neutral, the delay can be accessed together with the Belly switch
EXCLUSIVE for Pump Controllers: 9 programmable speeds

MECHANICAL DESIGN

TRACTION CONTROLLER WIRING
