51-FX503G124K : EZGO PDS 36V 500A Conversion Kit for Performance Motors
51-FX503G124K : EZGO PDS 36V 500A Conversion Kit for Performance Motors

Alternative Views:
Price: $856.51


Product Code: 51-FX503G124K


Condition*: 		Brand New ($856.51)

Qty:
Description Manuals & Diagram

EZGO PDS 36V 500A Conversion Kit for Performance Motors
Specifically designed to give you higher amperage over stock controls and provide more torque for your cart, this motor controller kit is made extra special by the fact that it's already field-tested to ensure reliability, with both stock and upgraded motors added into the package.

One stand-out feature here is the added added plug-braking features that will safely reduce the speed of your machine in ways that no other can do.

**Replace the controller and solenoid at the same time for smoother start in our cart.

PRODUCT DESCRIPTION

The 51-FX503G024K is a conversion kit for 36-volt, 500-ampere models of EZGO PDS vehicles. The kit is composed of a motor controller, a switch plate, and harnesses. The conversion kit provides an improved current rating compared to stock controllers with higher torque and reliable performance. The kit also allows safer control of speed when slowing down through the dynamic/plug braking feature.


The conversion kit can now be purchased here at Cloud Electric, your one-stop shop for all your electric component needs. Cloud Electric is a leading distributor of electronic components in North America. The store takes pride in our informative product descriptions, reliable pricing, and fast shipping.


**Use stock motor for a smoother start in your cart.

SPECIFICATIONS

MOTOR

Separately Excited Control

ARMATURE CURRENT

500 A

FIELD CURRENT

30 A

COMPATIBILITY

Vehicle:EZGO PDS

Voltage: 36 V

Motor: Stock Motor


FEATURES

  1. Reliable Performance

    1. Features of Oscillator Card

      1. Standard

      2. Acceleration Control

    2. Current Limiting

    3. Regenerative Braking to Zero Speed

    4. Plug Braking

    5. Auxiliary Speed Control

      1. Regulation of Top Speed

      2. Speed Limiting

      3. Field Weakening

    6. Ramp Start

    7. Internal Coil Suppression

    8. On-Board Coil Drivers

  2. System Override for Protection

    1. SRO - Static Return to Off

    2. Accelerator Volts Hold Off

    3. PMT - Pulse Monitor Trip

    4. TP - Thermal Protection

    5. Low Voltage Protection

  3. System Diagnostics

    1. Codes

      1. Standard

      2. Programmed

    2. Readings from Odometer

    3. Communication Port for RS 232

    4. Coil Driver Modules for Circuit Board

*** To know more about each feature, check the product manual here.

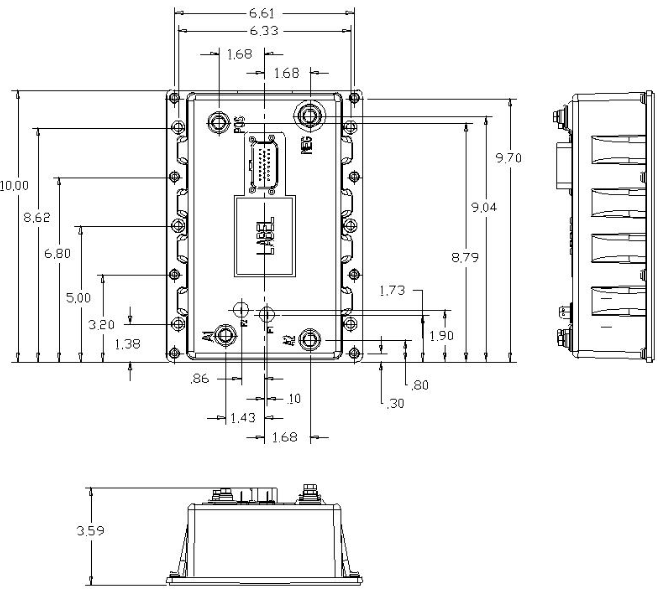

DIMENSIONS

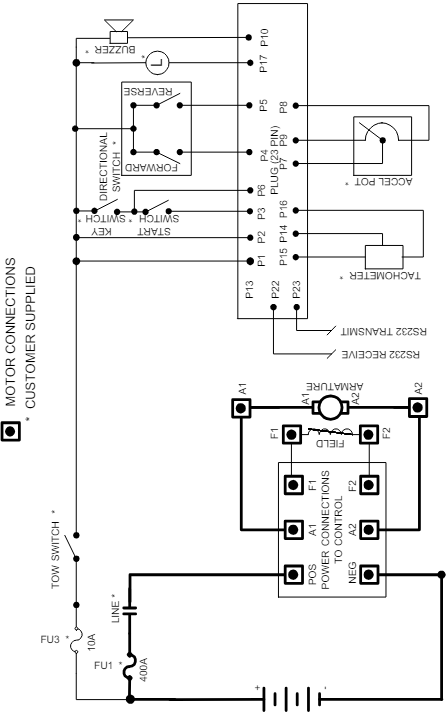

WIRING DIAGRAM
Product Details

PRODUCT DESCRIPTION

The 51-FX503G124K is a conversion kit for 36-volt, 500-ampere models of EZGO PDS vehicles. The kit is composed of a motor controller, a switch plate, and harnesses. The conversion kit provides an improved current rating compared to stock controllers with higher torque and reliable performance. The kit also allows safer control of speed when slowing down through the dynamic/plug braking feature.


The conversion kit can now be purchased here at Cloud Electric, your one-stop shop for all your electric component needs. Cloud Electric is a leading distributor of electronic components in North America. The store takes pride in our informative product descriptions, reliable pricing, and fast shipping.


**Use stock motor for a smoother start in your cart.


SPECIFICATIONS

MOTOR

Performance Motors

ARMATURE CURRENT

500 A

FIELD CURRENT

30 A

COMPATIBILITY

Vehicle:EZGO PDS

Voltage: 36 V

Motor: Stock Motor


FEATURES

  1. Reliable Performance

    1. Features of Oscillator Card

      1. Standard

      2. Acceleration Control

    2. Current Limiting

    3. Regenerative Braking to Zero Speed

    4. Plug Braking

    5. Auxiliary Speed Control

      1. Regulation of Top Speed

      2. Speed Limiting

      3. Field Weakening

    6. Ramp Start

    7. Internal Coil Suppression

    8. On-Board Coil Drivers

  2. System Override for Protection

    1. SRO - Static Return to Off

    2. Accelerator Volts Hold Off

    3. PMT - Pulse Monitor Trip

    4. TP - Thermal Protection

    5. Low Voltage Protection

  3. System Diagnostics

    1. Codes

      1. Standard

      2. Programmed

    2. Readings from Odometer

    3. Communication Port for RS 232

    4. Coil Driver Modules for Circuit Board

*** To know more about each feature, check the product manual here.


DIMENSIONS

WIRING DIAGRAM
