51-42L500NNVSY1 : New - Yamaha G14/16 STAR V-glide 36/48V 500A Conversion Kit

Home > Conversions & Upgrades >

51-42L500NNVSY1 : Yamaha G14/16 STAR V-glide 36/48V 500A Conversion Kit

Alternative Views:

Price: $663.48

Product Code: 51-42L500NNVSY1

Condition*:

Brand New ($663.48)

Qty:

Description

Manuals & Diagram

New Yamaha G14/16 STAR V-glide 36/48V 500A Conversion Kit

51-42L500NNVSY1

NEW RELEASE: Yamaha Conversion Kit (G14/16 STAR V-Glide 36/48V 500A Model)

The premium high-performance design you deserve can now be enjoyed in the STAR conversion kits. Built with increased performance that are more reliable than stock controls and easy installation steps, this kit is made extra special for having its controller's current limit and acceleration rate adjustable with the help of potentiometers.

Features to consider:

Yamaha Controls that replace YJN4 & YJN8 controls
36/48V, 500A Controls
Original Controller Harness is required to make this into a complete kit

Cross Reference/s: CL7012789 HU4192576 NL664 YP582071900

New EZGO/Club Car STAR V-glide/MCOR (3-bar) 36/48V 500A Controller

Cross Reference/s: CL7012788 HU4192575 NL585 YP582071899

About the new controller:

The conversion kit has the controller with part number 51-42L500NNVS is a basic 36/48 volt model with a 500-ampere current limit. The controller is equipped only with standard features such as controlled acceleration, current limiting, high-frequency operation, thermal and polarity protection, and ideal for low-voltage applications. This unit is a standard model with a 3-wire 5k potentiometer for Club Cars with V-Glide accelerators. This will complete the conversion of your cart.

The conversion kit is now available here in Cloud Electric, your one-stop shop for all your electric component needs. Cloud Electric is a leading distributor of electronic components in North America. The store takes pride in our informative product descriptions, reliable pricing, and fast shipping.

SPECIFICATIONS

POWER	MOSFETS
VOLTAGE	36-48 VDC
CURRENT LIMIT	700 A
ACCELERATOR INPUT	V Glide Club Car 3-wire 5k Potentiometer
MODEL	Basic, Standard Features
TEMPERATURE
Storage	-40°C to 85°C
Operating	-40°C to 50°C
Thermal Limit (Protection)	90°C
MOTOR REVERSING	Contactor/Switches
FREQUENCY	13 kHz

FEATURES (Standard)

Controlled acceleration

Current limiting

Thermal protection

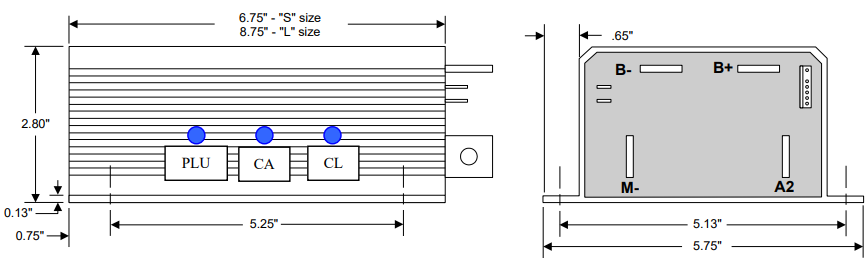

DIMENSIONS

Length: 222 mm

Width: 146 mm

Height: 71 mm

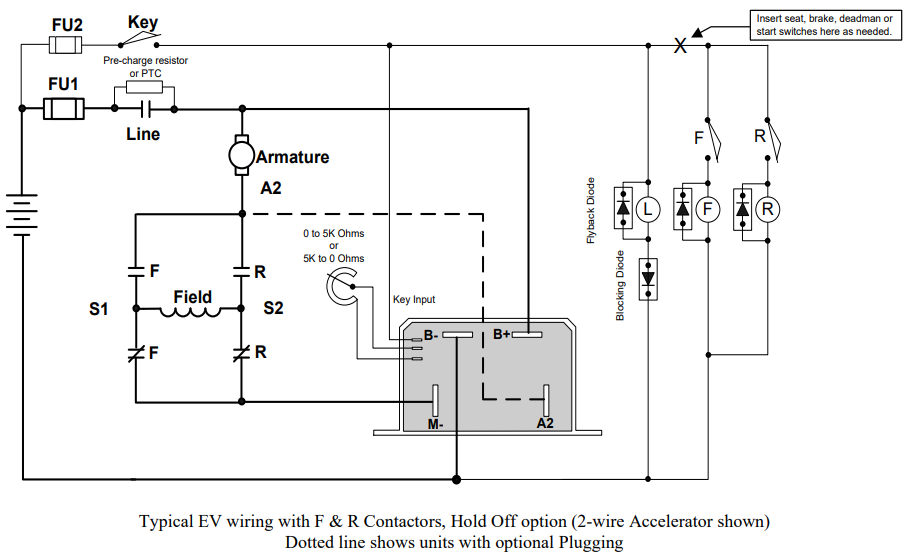

WIRING DIAGRAM
