PRODUCT DESCRIPTION

The FSIP controller 51-42L500NHVS is a basic 36-48 volt model with a 500-ampere current limit. The controller has an accelerator volts hold off feature. The controller is equipped only with standard features such as controlled acceleration, current limiting, high-frequency operation, thermal and polarity protection, and ideal for low-voltage applications. This unit is a standard model with a 3-wire 5k potentiometer for Club Cars with V-Glide accelerators.

The controller is now available here in Cloud Electric, your one-stop shop for all your electric component needs. Cloud Electric is a leading distributor of electronic components in North America. The store takes pride in our informative product descriptions, reliable pricing, and fast shipping.

SPECIFICATIONS

POWER	MOSFETS
VOLTAGE	36-48 VDC
CURRENT LIMIT	500 A
ACCELERATOR INPUT	V Glide Club Car 3-wire 5k Potentiometer
MODEL	Basic, Standard Features
TEMPERATURE
Storage	-40°C to 85°C
Operating	-40°C to 50°C
Thermal Limit (Protection)	90°C
MOTOR REVERSING	Contactor/Switches
FREQUENCY	13 kHz

FEATURES (Standard Only)

Controlled acceleration
Current limiting
Thermal protection

Specific Features

Has Hold off Accelerator Input

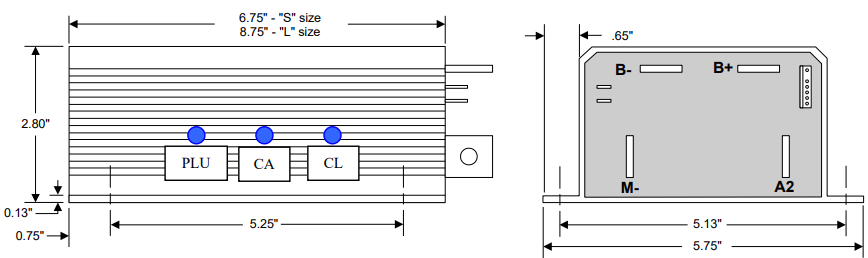

DIMENSIONS

Length: 222 mm

Width: 146 mm

Height: 71 mm

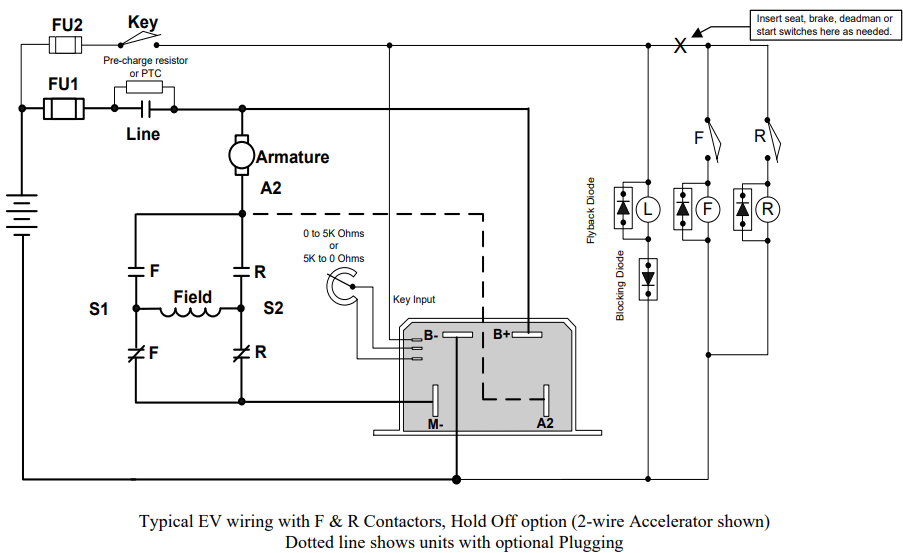

WIRING DIAGRAM
