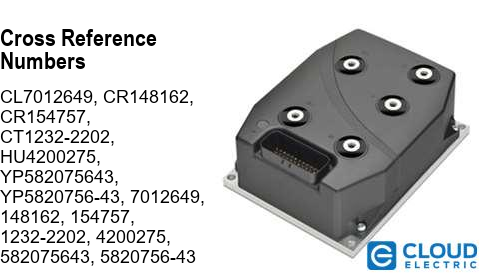

Cross Reference:
CL7012649, CR148162, CR154757, CT1232-2202, HU4200275, YP582075643, YP5820756-43
7012649, 148162, 154757, 1232-2202, 4200275, 582075643, 5820756-43
Please select the preferred condition for Curtis 24V 200A AC Controller 1232-2202 if options are available.
Remanufactured OEM Curtis 24V 200A AC Controller 1232-2202 will ship to your location in 1-3 days. Stock rebuilt items will generally ship same day unless prior testing is required. All rebuilt items are subjected to a core charge. The core charge will be refunded once we receive the core in one of our warehouse locations.
Repair Service for Curtis 24V 200A AC Controller 1232-2202 will include a complementary pick up from anywhere in USA (48 contiguous states). We can schedule a pick up the same day of order. The repair process typically takes 3-5 business days. But can be completed sooner if parts are readily available. (this is usually the case for top selling items)
For more information, please call us at 1844-808-5280. This unit comes with 6 Months warranty up-gradable to 36 months.
Curtis 24V 200A AC Controller 1232-2202
PRODUCT DESCRIPTION
The Curtis 1232-2202 controller operates at a frequency of 10 kHz to give high-quality power to AC induction motors. This controller uses a field-programmable logic that produces a never-before-seen power quality making it a flexible controller option for dual drive, lifting, traction, and other related applications. The controller also allows CAN Bus communication, has reduced wiring, and allows input and output sharing throughout the system.
The Curtis 1232-2202 is a 24-volt model with a current limit of 200 amperes. It weighs 1.7 kg, 180 mm in length, 140 mm in width, and 71 mm in depth. The model also utilizes a modifiable operating system with logic that can carry out vehicle control language, which expands the control customization possibilities, increases market responsiveness, and allows product differentiation. The controller also has several key features that improve the overall driving experience.
The controller can now be purchased here in Cloud Electric, your one-stop shop for all your electric component needs. Cloud Electric is a leading distributor of electronic components in North America. We take pride in our informative product descriptions, pricing, and shipping speed.
SPECIFICATIONS
|
NOMINAL VOLTAGE
|
24 V
|
|
ELECTRICAL ISOLATION
|
500 VAC (Due to Heatsink)
|
|
CURRENT LIMIT
|
200 A
|
|
RATING
|
|
|
|
200 A
|
|
|
150 A
|
|
TEMPERATURE
|
|
|
|
-40°C to 95°C
|
|
|
-40°C to 50°C
|
|
HEATSINK
|
|
|
|
-40°C to 95°C
|
|
|
Cutoff finishes at -40°C
|
|
|
Starts at 85°C
Cutoff finishes at 95°C
|
PHYSICAL SPECIFICATIONS
|
PACKAGING
|
IP65
|
|
WEIGHT
|
1.7 kg
|
|
DIMENSIONS
|
|
|
|
180 mm
|
|
|
140 mm
|
|
|
71 mm
|
FEATURES
|
Features
|
Purpose
|
|
Improved Pulse Width Modulation
|
Offers silent and efficient operation while reducing heat losses and its torque ripple
|
|
Full Regeneration Capability
|
Inverts the direction of current to assist battery’s energy recovery
|
|
Efficient Field Oriented Control
|
The FOC produces a regulated speed, increases the capability of driving uphill, and enhanced the driving experience
|
|
Control Algorithm Adapts to the Motor Conditions
|
Ability to maintain performance under any conditions
|
|
Speed Control
|
Ability to ensure deceleration safety despite low and zero speed
|
|
Simultaneous Battery Estimation
|
The battery, power, and torque are estimated in real-time
|
|
Power Limiting Maps
|
Regardless of battery’s state-of-charge, it maintains performance through performance customization
|
|
Operating System
|
Motor tasks are controllable due to programmable logic done through a paralleling process that the OS allows
|
|
Expanded Input and Output
|
Adaptable to the input and output demand.
|
|
CAN Bus Connection
|
Allows the system to communicate to other systems that with enabled CAN Bus
|
|
Field Programmable
|
Can be remotely programmed with Flash downloadable operating code
|
|
Temperature Functions
|
Performs cutback functions, notifications, and automatic shutdowns to protect the motor and controller
|
|
Dual Drive Functionality
|
Smooth and safe operations during operation to reduce the risk of tire wear
|
|
Metal Insulation
|
The power base substrate is insulated for high-quality heat transfer
|
ACCESSORIES COMPATIBLE WITH CURTIS 1232
Curtis 1314 - a compatible 32-bit application that runs on personal computers with Windows as an operating system that functions similarly to the handheld Curtis controller.
Curtis 1311 - a programmer that assists in parameter control and system diagnostics.
DIMENSIONS
WIRING DIAGRAM
|
|
|
 |
|
 |
|
