Curtis 36/48V 550A (5K-0) PMC 1221B-5703

Cross Reference:

CL7008176, CT1221B-5703
7008176, 1221B-5703

Please select the preferred condition for Curtis 36/48V 550A (5K-0) PMC 1221B-5703 if options are available.

Remanufactured OEM Curtis 36/48V 550A (5K-0) PMC 1221B-5703 will ship to your location in 1-3 days. Stock rebuilt items will generally ship same day unless prior testing is required. All rebuilt items are subjected to a core charge. The core charge will be refunded once we receive the core in one of our warehouse locations.

Repair Service for Curtis 36/48V 550A (5K-0) PMC 1221B-5703 will include a complementary pick up from anywhere in USA (48 contiguous states). We can schedule a pick up the same day of order. The repair process typically takes 3-5 business days. But can be completed sooner if parts are readily available. (this is usually the case for top selling items)

For more information, please call us at 1844-808-5280. This unit comes with 6 Months warranty up-gradable to 36 months.

PRODUCT DESCRIPTION

The electronic motor speed controller, Curtis Controller Model 1221B-5703, operates at a high frequency of 15 kHz, making these controllers a noiseless and cost-efficient choice as they permit smooth control of brake, torque, and speed. It is designed to suit various industrial applications such as vehicles for material handling and on-road cars.

The Curtis 1221B-5703 has a nominal voltage of 36-48 volts, a current limit of 550 amperes, and a 5K-0 ohms throttle input. It weighs 4.9 kg and is 282 mm in length, 180 mm in width, and 80 mm in depth. This controller can provide a better driving experience due to embedded features and optional features offered, which can be added according to the preference and demands of the desired application.

The controller can now be purchased here in Cloud Electric, your one-stop shop for all your electric component needs. Cloud Electric is a leading distributor of electronic components in North America. We take pride in our informative product descriptions, pricing, and shipping speed.

SPECIFICATIONS

NOMINAL VOLTAGE RANGE	36-48 V
VOLTAGE DROP	0.25 V @ 100 A
UNDERVOLTAGE CUTBACK	21 V
CURRENT LIMIT	550 A
CURRENT RATING
2 Minutes	550 A
5 Minutes	375 A
1 Hour	225 A
RESISTANCE	270 ohms
POWER RATING	10 W
STANDBY CURRENT	20 mA
OPERATING FREQUENCY	15 kHz
TEMPERATURE RANGE DURING OPERATION	-25°C to 75°C
THROTTLE INPUT	5K-0 ohms

PHYSICAL SPECIFICATIONS

WEIGHT	4.9 kg
DIMENSION
Length	282 mm
Width	180 mm
Depth	80 mm

FEATURES

Feature	Purpose
Brake Control and Variable Drive Speed	Allows accurate vehicle control for an improved driving experience
Power MOSFET	Highly efficient and noiseless operation
Protection and Compensation Circuit for Temperature	Allows stable current limit and cutback function for during under and over temperature condition
Cutback Function (Undervoltage)	Provides protection from low battery voltage (internal and/or external)
Circuitry for Fault Detection	Helps in preventing runaway conditions and monitors components such as the battery, and bypass contactor, among others
Easy Installation	No further alterations
Tin-plating (Bus Bars)	Protection for solid copper bus bars
Push-in Connectors	Allows control wiring

OPTIONAL FEATURES

Feature	Purpose
High Pedal Disable	Allows a safe start by monitoring the status of the throttle. If the vehicle is started with an applied throttle, this feature disables it from operating until the throttle is returned to a neutral position

DIMENSIONS

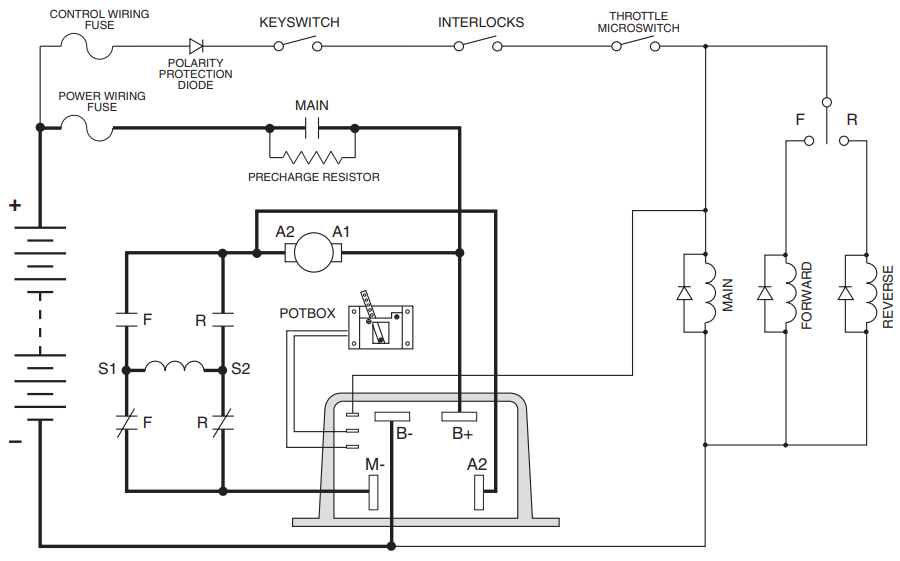

WIRING DIAGRAM
