Curtis 48/72V 500A (0-5K) PMC 1221-6601
Curtis 48/72V 500A (0-5K) PMC 1221-6601


Price: $816.74

Price with Selected Options: $816.74


Product Code: 1221-6601


Condition*:
Remanufactured OEM ($816.74) -

Repair Service ($652.81)

Qty:
Description Manuals & Diagram

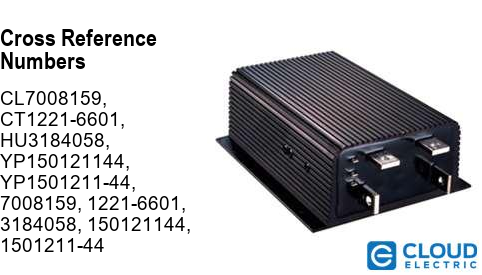

Cross Reference:

CL7008159, CT1221-6601, HU3184058, YP150121144, YP1501211-44
7008159, 1221-6601, 3184058, 150121144, 1501211-44

Please select the preferred condition for Curtis 48/72V 500A (0-5K) PMC 1221-6601 if options are available.

Remanufactured OEM Curtis 48/72V 500A (0-5K) PMC 1221-6601 will ship to your location in 1-3 days. Stock rebuilt items will generally ship same day unless prior testing is required. All rebuilt items are subjected to a core charge. The core charge will be refunded once we receive the core in one of our warehouse locations.

Repair Service for Curtis 48/72V 500A (0-5K) PMC 1221-6601 will include a complementary pick up from anywhere in USA (48 contiguous states). We can schedule a pick up the same day of order. The repair process typically takes 3-5 business days. But can be completed sooner if parts are readily available. (this is usually the case for top selling items)

For more information, please call us at 1844-808-5280. This unit comes with 6 Months warranty up-gradable to 36 months.



Curtis 48/72V 500A (0-5K) PMC 1221-6601

PRODUCT DESCRIPTION

The Curtis Controller from the 1221 model is designed to operate at a frequency of 15 kHz, making it silent in addition to being efficient in terms of cost and its ability to control the brake, torque, and speed of the motor fitted for various industrial applications. It is generally used for electric vehicles ranging from equipment assisting material handling to boom trucks.


The Curtis 1221-6601 is a 48/72-volt model with 500 amperes and uses a 0-5K ohms throttle input. The controller can provide a better driving experience due to embedded features and optional features offered, which can be added according to the preference and demands of the desired application.


The controller can now be purchased here in Cloud Electric, your one-stop shop for all your electric component needs. Cloud Electric is a leading distributor of electronic components in North America. We take pride in our informative product descriptions, pricing, and shipping speed.


ELECTRICAL SPECIFICATIONS

INPUT BATTERY VOLTAGE (NOMINAL)

48 - 72 V

OPERATING FREQUENCY

15 kHz

CURRENT


  • STANDBY

100 mA

  • LIMIT

500 A

RATING


  • 2 MIN

500 A

  • 5 MIN

350 A

  • 1 HOUR

200 A

VOLTAGE DROP (100A)

0.25 V

CUTBACK (UNDERVOLTAGE)

32 V

MAXIMUM TOTAL CURRENT (F/R) + 1A

1 A

THROTTLE INPUT

0-5K ohms

  • 300 ohms

Beginning of Input

  • 4,400 ohms

Full Output



PHYSICAL SPECIFICATIONS

WEIGHT

4.9 kg

LENGTH

282 mm

WIDTH

180 mm

DEPTH

80 mm



FEATURES

Feature

Purpose

Brake Control and Variable Drive Speed

Allows accurate vehicle control for an improved driving experience

Power MOSFET

Highly efficient and noiseless operation

Protection and Compensation Circuit for Temperature

Allows stable current limit and cutback function for during under and over temperature condition

Cutback Function (Undervoltage)

Provides protection from low battery voltage (internal and/or external)

Circuitry for Fault Detection

Helps in preventing runaway conditions and monitors components such as the battery, and a bypass contactor, among others

Contactor Coils Protection

Protects the contactor drivers for forward, reverse, and a bypass from short circuit

Easy Installation

No further alterations

Tin-plating (Bus Bars)

Protection for solid copper bus bars

Push-in Connectors

Allows control wiring



OPTIONAL FEATURES

  • Static Return to Off: Allows a safe start by requiring the forward and reverse selector to be returned to a neutral position before allowing an output

  • High Pedal Disable: Allows a safe start by monitoring the status of the throttle. If the vehicle is started with an applied throttle, this feature disables it from operating until the throttle is returned to a neutral position

  • Emergency Reverse: Stops the advancing vehicle swiftly to allow a smooth change in direction (reverse)



DIMENSIONS



WIRING DIAGRAM

Note: Bypass (1A) is available only for 1204x models in 12 Volts and 24-36 Volts
