Curtis 24/36V 400A (5K-0) PMC 1214-8209

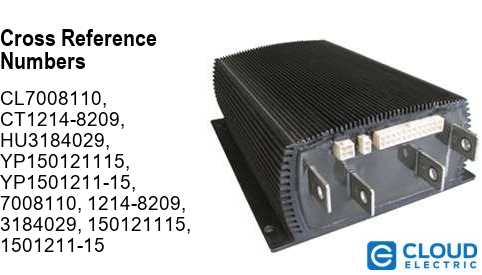

Cross Reference:

CL7008110, CT1214-8209, HU3184029, YP150121115, YP1501211-15
7008110, 1214-8209, 3184029, 150121115, 1501211-15

Please select the preferred condition for Curtis 24/36V 400A (5K-0) PMC 1214-8209 if options are available.

Remanufactured OEM Curtis 24/36V 400A (5K-0) PMC 1214-8209 will ship to your location in 1-3 days. Stock rebuilt items will generally ship same day unless prior testing is required. All rebuilt items are subjected to a core charge. The core charge will be refunded once we receive the core in one of our warehouse locations.

Repair Service for Curtis 24/36V 400A (5K-0) PMC 1214-8209 will include a complementary pick up from anywhere in USA (48 contiguous states). We can schedule a pick up the same day of order. The repair process typically takes 3-5 business days. But can be completed sooner if parts are readily available. (this is usually the case for top selling items)

For more information, please call us at 1844-808-5280. This unit comes with 6 Months warranty up-gradable to 36 months.

PRODUCT DESCRIPTION

The Curtis 1214-8209 is a programmable controller that efficiently controls motor speed. This design also has simple installation requirements, which makes it a perfect controller option for large industrial vehicles like pallet trucks. The controller comes in compact packaging with highly reliable power and features due to its power MOSFET design combined with a 1207-based microprocessor logic section.

The Curtis 1214-8209 is a 24/36-volt model with a 400 amperes current limit and utilizes 5K-0 ohm throttle input. It is 210 mm in length, 180 mm in width, and 82 mm in depth. This controller can provide a better driving experience due to embedded features and optional features offered, which can be added according to the preference and demands of the desired application.

The controller can now be purchased here in Cloud Electric, your one-stop shop for all your electric component needs. Cloud Electric is a leading distributor of electronic components in North America. We take pride in our informative product descriptions, pricing, and shipping speed.

SPECIFICATIONS

NOMINAL VOLTAGE RANGE	24-36 V
VOLTAGE DROP	<0.20 V @ 100 A
UNDERVOLTAGE CUTBACK	16 V
MINIMUM ELECTRICAL ISOLATION	500 VAC
CURRENT LIMIT	400 A
2 Minute Rating	400 A
KSI INPUT
Input Voltage	16-45 V
Input Current	W/o Programmer: 80 mA W/ Programmer: 130 mA
LOGIC INPUT
Input Threshold	8 V
Current	10 mA @ 24 V
OPERATING FREQUENCY	15 kHz
TEMPERATURE
Ambient (Operational)	-40°C to 50°C
Undertemperature Cutback (Heatsink)	-25°C
Overtemperature Cutback (Heatsink)	85°C
THROTTLE INPUT	5K-0 ohms

PHYSICAL SPECIFICATION

DIMENSION
Length	210 mm
Width	118 mm
Depth	82 mm

FEATURES

Feature	Purpose
Power MOSFET	Highly efficient and noiseless operation
Over and Undervoltage Protection	Protects load from damage
Protection and Compensation Circuit for Temperature	Allows stable current limit and cutback function for during under and over temperature condition
Curtis 13XX	Programmable using this handheld programmer
Circuitry and Software for Fault Detection	Helps in preventing runaway conditions and monitors components such as the battery, and bypass contactor, among others
Programmable Input Sequencing Options	This feature has combinations of static return to off and neutral start
MultiMode	User-select feature offering four operating personalities and the top speed of the vehicle is controlled
Arcless Contactor Switching	Quick reduction to zero of controller output duty factor once an inputted direction is cancelled.
Plug Braking	Good plug braking control with fixed or variable plug braking control
Neutral Brake	Allows automatic braking in neutral with a programmable current limit. The vehicle is free to move in neutral when this feature is not selected.
Emergency Reverse	Stops the advancing vehicle swiftly to allow a smooth change in direction (reverse)
Anti-rollback	Allows starting the vehicle with a higher current
Simple wiring, contactor, and driver monitoring	Allows fail-safe operation checking for open circuits and shorts
Various Throttle Types	Allows accommodation of various throttle types
Ramp Shape	Allows flexible throttle response feel the selection
Component Protection	The components are protected through packaging and tin-plating

ACCESSORIES COMPATIBLE WITH CURTIS 1214-8

Curtis 13XX - a programmer that assists in parameter control and system diagnostics.
