Curtis 24V 45A (WW) PM Controller 1210-2203

Cross Reference:

CL7008093, CT1210-2203, HU4078815, NI56315294, YP550076367, YP5500763-67
7008093, 1210-2203, 4078815, 56315294, 550076367, 5500763-67

Please select the preferred condition for Curtis 24V 45A (WW) PM Controller 1210-2203 if options are available.

Remanufactured OEM Curtis 24V 45A (WW) PM Controller 1210-2203 will ship to your location in 1-3 days. Stock rebuilt items will generally ship same day unless prior testing is required. All rebuilt items are subjected to a core charge. The core charge will be refunded once we receive the core in one of our warehouse locations.

Repair Service for Curtis 24V 45A (WW) PM Controller 1210-2203 will include a complementary pick up from anywhere in USA (48 contiguous states). We can schedule a pick up the same day of order. The repair process typically takes 3-5 business days. But can be completed sooner if parts are readily available. (this is usually the case for top selling items)

For more information, please call us at 1844-808-5280. This unit comes with 6 Months warranty up-gradable to 36 months.

PRODUCT DESCRIPTION

The MultiMode motor speed controller, Curtis Controller Model 1210-2203, is used for permanent magnet (PM) motors. Due to the four-quadrant, full bridge power output stage, it is not necessary to add relays and contactors to reach full braking and motor reversing power. It is also a silent and cost-effective controller for brake, torque, and speed control of the motor.

The Curtis 1210-2203 is a 24-volt model with a 45-ampere current limit operating at a frequency of 15 kHz and utilizes a wigwag throttle. The controller provides a better driving experience due to embedded features and optional features offered, which can be added according to the preference and demands of the desired application.

The controller can now be purchased here in Cloud Electric, your one-stop shop for all your electric component needs. Cloud Electric is a leading distributor of electronic components in North America. We take pride in our informative product descriptions, pricing, and shipping speed.

SPECIFICATIONS

VOLTAGE
Nominal Voltage Range	24 V
Minimum Electrical Isolation	500 V
Cutoff (Overvoltage)	36 V
Cutoff (Undervoltage)	17 V
Voltage Drop	0.45 V @ 20 A
OPERATING FREQUENCY	15 kHz
THROTTLE TYPE	Center-off (wig-wag)
CURRENT
Current Rating at 30s	45 A
1 Hour Rating	15 A
Maximum LED Output	15 mA
Maximum Horn Output	15 mA
RESISTANCE
Minimum Motor Resistance	45 A model: 160 milliohms
Electromagnetic (EM) brakes	32-200 ohms
TEMPERATURE
Ambient (Storage)	-40 - 75 °C
Ambient (Operational)	-25 - 45 °C
Undertemperature (Heatsink)	-25 °C (50% armature current)
Overtemperature (Heatsink)	Starts at 80°C (Linear cutback) Cutoff finishes at 134°C

PHYSICAL SPECIFICATION

WEIGHT	0.6 kg
DIMENSION
Length	147 mm
Width	94 mm
Depth	43 mm
PACKAGING	IP54 with boots IP40 without boots

FEATURES

Feature	Purpose
Regulated Speed	Guaranteed precision when navigating uneven terrain
Linear Cutback Function	Allows smooth navigation even reaching indicated limits of voltage and temperature
EM brake	Guarantees that the vehicle stops safely
Rejects input while Charging	Guarantees that the vehicle does not start when charging
Key-Off Deceleration	Allows smooth stop once it switches off or a fault is detected
Anti-Forward & Anti-Rollback	A safety function that guarantees no unintentional mobilization will occur
Proprietary Algorithm	Protects gearbox and assists the vehicle in starting and reversing smoothly
Potentiometer for Speed Limit	Allows control of the vehicle speed may it be direct or linear

ADDITIONAL FEATURES

Feature	Purpose
Push Switch	Allowing free-wheeling of the vehicle by releasing of brakes
Push-Too-Fast	Speed restriction during manual pushing of the vehicle even without power assistance
Built-in Features	This feature makes the wiring requirement of adding a seat lift more simple
MultiMode (Indoor & Outdoor Modes)	Modes are programmable to adapt setting condition
Power Saving	Avoids battery drain when not in use
Discharge Indicator	Monitors and indicates battery discharge

NOTABLE FEATURES FOR SAFETY

The controller remains functional when exposed to noisy Radio Frequency surroundings
There is a continuous monitoring feature intended for circuits and software
Components are automatically monitored for fault detection and inhibit the vehicle from driving upon power-up
The reverse beeper notifies bystanders of the reversing vehicle
Sealing that can withstand harsh environments - IP54 (w/ boots) and IP40 (w/o boots)

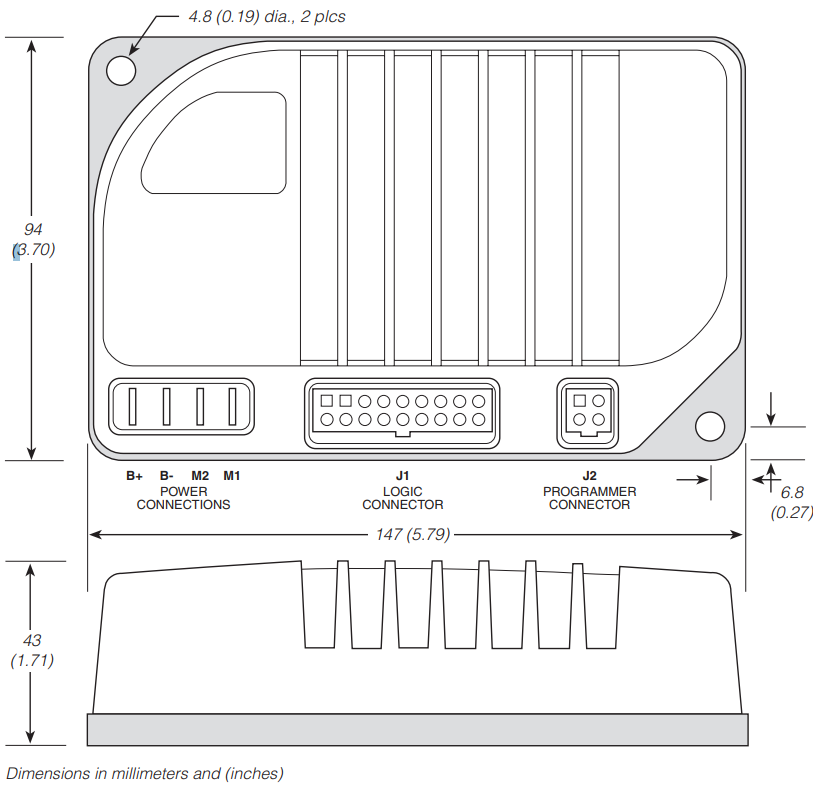

DIMENSIONS

WIRING DIAGRAM

Wiring for Applications w/o Seat Lift Feature

Wiring for Applications w/ Seat Lift Feature
