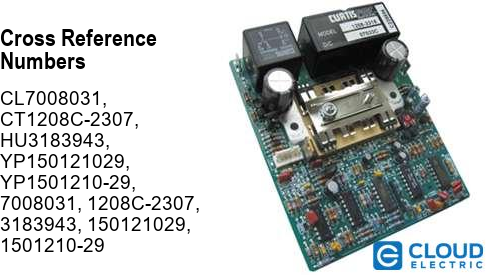

Cross Reference:
CL7008031, CT1208C-2307, HU3183943, YP150121029, YP1501210-29
7008031, 1208C-2307, 3183943, 150121029, 1501210-29
Please select the preferred condition for Curtis 24V 70A (WW) PM Motor Controller 1208C-2307 if options are available.
Remanufactured OEM Curtis 24V 70A (WW) PM Motor Controller 1208C-2307 will ship to your location in 1-3 days. Stock rebuilt items will generally ship same day unless prior testing is required. All rebuilt items are subjected to a core charge. The core charge will be refunded once we receive the core in one of our warehouse locations.
Repair Service for Curtis 24V 70A (WW) PM Motor Controller 1208C-2307 will include a complementary pick up from anywhere in USA (48 contiguous states). We can schedule a pick up the same day of order. The repair process typically takes 3-5 business days. But can be completed sooner if parts are readily available. (this is usually the case for top selling items)
For more information, please call us at 1844-808-5280. This unit comes with 6 Months warranty up-gradable to 36 months.
Curtis 24V 70A (WW) PM Motor Controller 1208C-2307
PRODUCT DESCRIPTION
The electronic DC motor speed controller, Curtis Controller Model 1208C-2307, operates at a high frequency of 15 kHz, making it a noiseless and cost-efficient choice for permanent magnet DC (PMDC) motors for vehicles such as mobility aids and AGVs, among others.
The Curtis 1208C-2307 has a nominal voltage of 24 volts, a current limit of 70 amperes, and utilizes a wigwag throttle. The controller weighs 0.23 kg and is 126 mm in length, 104 mm in width, and 32 mm in depth. It provides a better driving experience due to embedded features and optional features offered, which can be added according to the preference and demands of the desired application.
The controller can now be purchased here in Cloud Electric, your one-stop shop for all your electric component needs. Cloud Electric is a leading distributor of electronic components in North America. We take pride in our informative product descriptions, pricing, and shipping speed.
SPECIFICATIONS
|
NOMINAL VOLTAGE RANGE
|
24 V
|
|
VOLTAGE
|
|
|
|
30 V
|
|
|
16.5 V
|
|
MOTOR RESISTANCE (MIN)
|
250 mOhm
|
|
CURRENT LIMIT RANGE
|
24 V Model: 45-70 A
|
|
CURRENT LIMIT OF THIS MODEL
|
1208C-2307: 70 A
|
|
CURRENT RATING
|
60 A @ 30 seconds
|
|
BRAKING CURRENT (MAX)
|
50 A
|
|
VOLTAGE DROP
|
0.30 V @ 20 A
|
|
UNDERVOLTAGE CUTBACK
|
16.5 V
|
|
FET COMP
|
3/3
|
|
OPERATING FREQUENCY
|
15 kHz
|
|
THROTTLE TYPE
|
Wigwag Throttle
|
PHYSICAL SPECIFICATIONS
|
WEIGHT
|
0.23 kg
|
|
DIMENSION
|
|
|
|
126 mm
|
|
|
104 mm
|
|
|
32 mm
|
FEATURES
|
Feature
|
Purpose
|
|
Power MOSFET
|
Highly efficient and noiseless operation
|
|
Circuitry Protection
|
Done by precise limiting of current
|
|
Mobilization Control
|
The acceleration and deceleration can be controlled in various ways
|
|
Minimizing Reverse Speed
|
Allows reduction of reversing speed while the full speed option is also available
|
|
Switch and Potentiometer
|
The external devices allow control and adjustment of top speed
|
|
Enhanced Anti-rollback Function
|
When driving uphill, the vehicle is inhibited to roll backward and sets a delay for the brake
|
|
High Pedal Disable
|
Allows a safe start by monitoring the status of the throttle. If the vehicle is started with an applied throttle, this feature disables it from operating until the throttle is returned to the neutral position
|
|
Neutral Throttle
|
When the vehicle is off and unmanned, it brakes motor
|
|
Current Limited Brake
|
Circuit protection against circuit
|
|
Detection of Missing Brakes
|
Once the electromagnetic brake is faulty or disconnected, the controller is not inhibited from functioning
|
|
Circuitry for Checking Faulty System
|
Monitors whether throttle input and controller output is matching then inhibits the operation if not as it signifies defect
|
|
EMI Immunity
|
Tolerates operation in a noisy environment
|
|
Throttle Buffer
|
Enhances stability in decreased applications of throttle throw
|
|
Over and Under Voltage Protection
|
Protects the device and load against damage
|
|
Reverse Polarity
|
The system will not function when the batteries are reversed
|
|
Easy Installation
|
No further alterations are necessary
|
|
Push-in Connectors
|
Allows control wiring
|
DIMENSIONS
WIRING DIAGRAM
|
|
|
 |
|
 |
|
