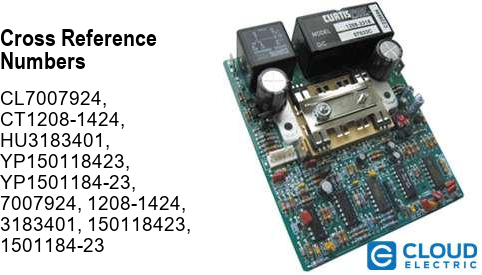

Curtis 12V (WW) PM Motor Controller 1208-1424

Cross Reference:

CL7007924, CT1208-1424, HU3183401, YP150118423, YP1501184-23
7007924, 1208-1424, 3183401, 150118423, 1501184-23

Please select the preferred condition for Curtis 12V (WW) PM Motor Controller 1208-1424 if options are available.

Remanufactured OEM Curtis 12V (WW) PM Motor Controller 1208-1424 will ship to your location in 1-3 days. Stock rebuilt items will generally ship same day unless prior testing is required. All rebuilt items are subjected to a core charge. The core charge will be refunded once we receive the core in one of our warehouse locations.

Repair Service for Curtis 12V (WW) PM Motor Controller 1208-1424 will include a complementary pick up from anywhere in USA (48 contiguous states). We can schedule a pick up the same day of order. The repair process typically takes 3-5 business days. But can be completed sooner if parts are readily available. (this is usually the case for top selling items)

For more information, please call us at 1844-808-5280. This unit comes with 6 Months warranty up-gradable to 36 months.

PRODUCT DESCRIPTION

The electronic DC motor speed controller, Curtis model 1208-1424, operates at a frequency of 15 kHz, making it an efficient and noiseless controller. This controller is specifically designed for permanent magnet (PM) motors, which is used for vehicles that help in mobilization such as mobility aids and AGVs, among others.

The Curtis 1208-1424 is a 12-volt model and utilizes a wigwag throttle. The controller only weighs 0.23 kg, has a length of 126 mm, a width of 104mm, and a depth of 32 mm. Its lightweight and compact design is considered to be one of its key features alongside the power FET design, well-protected components, cutback functions, and electromagnetic brake.

The Curtis 1208-1424 controller can now be purchased here in Cloud Electric, your one-stop shop for all your electric component needs. Cloud Electric is a leading distributor of electronic components in North America. We take pride in our informative product descriptions, pricing, and shipping speed.

SPECIFICATIONS

NOMINAL VOLTAGE RANGE	12 V
OPERATIONAL VOLTAGE	12 V Model: 15 V
OPERATING FREQUENCY	15 kHz
THROTTLE TYPE	Wigwag Throttle

PHYSICAL SPECIFICATIONS

WEIGHT	0.23 kg
DIMENSION
Length	126 mm
Width	104 mm
Depth	32 mm

FEATURES

Feature	Purpose
Reverse Polarity	The system will not function when the batteries are reversed
Circuitry for Checking Faulty System	Monitors whether throttle input and controller output is matching then inhibits the operation if not as it signifies defect
Over and Under Voltage Protection	Protects the device and load against damage
Current Limiting	Protects the controller and the motor from runaway conditions such as overcurrent surge
Circuitry Protection	Done by precise limiting of current
Electromagnetic Brake	Allows control of EM-related functions
Power FET	Highly efficient and noiseless operation

DIMENSIONS

WIRING DIAGRAM
