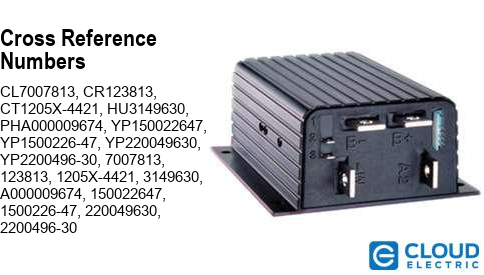

Cross Reference:
CL7007813, CR123813, CT1205X-4421, HU3149630, PHA000009674, YP150022647, YP1500226-47, YP220049630, YP2200496-30
7007813, 123813, 1205X-4421, 3149630, A000009674, 150022647, 1500226-47, 220049630, 2200496-30
Please select the preferred condition for Curtis 24/36V 400A (5K-0) PMC 1205X-4421 if options are available.
Remanufactured OEM Curtis 24/36V 400A (5K-0) PMC 1205X-4421 will ship to your location in 1-3 days. Stock rebuilt items will generally ship same day unless prior testing is required. All rebuilt items are subjected to a core charge. The core charge will be refunded once we receive the core in one of our warehouse locations.
Repair Service for Curtis 24/36V 400A (5K-0) PMC 1205X-4421 will include a complementary pick up from anywhere in USA (48 contiguous states). We can schedule a pick up the same day of order. The repair process typically takes 3-5 business days. But can be completed sooner if parts are readily available. (this is usually the case for top selling items)
For more information, please call us at 1844-808-5280. This unit comes with 6 Months warranty up-gradable to 36 months.
Curtis 24/36V 400A (5K-0) PMC 1205X-4421
PRODUCT DESCRIPTION
The Curtis Controller from the 1205X model is designed to operate at a frequency of 15 kHz, making it silent in addition to being efficient in terms of cost and its ability to control the brake, torque, and speed of the motor fitted for various industrial applications. It is generally used for electric vehicles ranging from equipment assisting material handling to boom trucks.
The Curtis 1205X-4421 is a 24/36-volt model with 400 amperes and uses a 5K-0 ohms throttle input. It also has the optional bypass (1A) feature as it is available for models in 12 volts and 24-36 volts. The controller can provide a better driving experience due to embedded features and optional features offered, which can be added according to the preference and demands of the desired application.
The controller can now be purchased here in Cloud Electric, your one-stop shop for all your electric component needs. Cloud Electric is a leading distributor of electronic components in North America. We take pride in our informative product descriptions, pricing, and shipping speed.
ELECTRICAL SPECIFICATIONS
|
INPUT BATTERY VOLTAGE (NOMINAL)
|
24 - 36 V
|
|
OPERATING FREQUENCY
|
15 kHz
|
|
CURRENT
|
|
|
|
20 mA
|
|
|
400 A
|
|
RATING
|
|
|
|
400 A
|
|
|
275 A
|
|
|
175 A
|
|
VOLTAGE DROP (100A)
|
0.25 V
|
|
CUTBACK (UNDERVOLTAGE)
|
16 V
|
|
MAXIMUM TOTAL CURRENT (F/R) + 1A
|
2 A
|
|
THROTTLE INPUT
|
5K-0 ohms
|
|
|
Full Output
|
|
|
Beginning of Input
|
PHYSICAL SPECIFICATIONS
|
WEIGHT
|
2.7 kg
|
|
LENGTH
|
225 mm
|
|
WIDTH
|
146 mm
|
|
DEPTH
|
70 mm
|
FEATURES
|
Feature
|
Purpose
|
|
Brake Control and Variable Drive Speed
|
Allows accurate vehicle control for an improved driving experience
|
|
Power MOSFET
|
Highly efficient and noiseless operation
|
|
Protection and Compensation Circuit for Temperature
|
Allows stable current limit and cutback function for during under and over temperature condition
|
|
Cutback Function (Undervoltage)
|
Provides protection from low battery voltage (internal and/or external)
|
|
Circuitry for Fault Detection
|
Helps in preventing runaway conditions and monitors components such as the battery, and a bypass contactor, among others
|
|
Contactor Coils Protection
|
Protects the contactor drivers for forward, reverse, and a bypass from short circuit
|
|
Easy Installation
|
No further alterations
|
|
Tin-plating (Bus Bars)
|
Protection for solid copper bus bars
|
|
Push-in Connectors
|
Allows control wiring
|
OPTIONAL FEATURES
-
Static Return to Off: Allows a safe start by requiring the forward and reverse selector to be returned to a neutral position before allowing an output
-
High Pedal Disable: Allows a safe start by monitoring the status of the throttle. If the vehicle is started with an applied throttle, this feature disables it from operating until the throttle is returned to a neutral position
-
Emergency Reverse: Stops the advancing vehicle swiftly to allow a smooth change in direction (reverse)
-
Bypass: Enables the motor to surpass the current limit to increase torque when necessary.
