Curtis 24/36V 500A (5K-0) PMC 1205S-4601

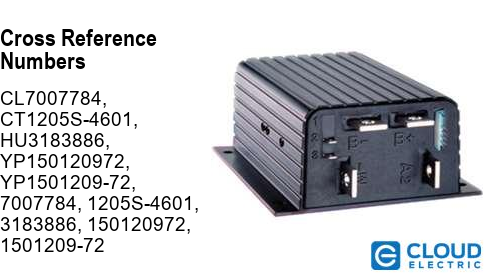

Cross Reference:

CL7007784, CT1205S-4601, HU3183886, YP150120972, YP1501209-72
7007784, 1205S-4601, 3183886, 150120972, 1501209-72

Please select the preferred condition for Curtis 24/36V 500A (5K-0) PMC 1205S-4601 if options are available.

Remanufactured OEM Curtis 24/36V 500A (5K-0) PMC 1205S-4601 will ship to your location in 1-3 days. Stock rebuilt items will generally ship same day unless prior testing is required. All rebuilt items are subjected to a core charge. The core charge will be refunded once we receive the core in one of our warehouse locations.

Repair Service for Curtis 24/36V 500A (5K-0) PMC 1205S-4601 will include a complementary pick up from anywhere in USA (48 contiguous states). We can schedule a pick up the same day of order. The repair process typically takes 3-5 business days. But can be completed sooner if parts are readily available. (this is usually the case for top selling items)

For more information, please call us at 1844-808-5280. This unit comes with 6 Months warranty up-gradable to 36 months.

PRODUCT DESCRIPTION

The electronic motor speed controller, Curtis Controller Model 1205S-4601, operates at high frequency, making them a noiseless and cost-efficient choice as they allow smooth control of brake, torque, and speed. It is designed for various industrial applications, ranging from vehicles used for material transport to golf carts.

The Curtis 1205S-4601 is a 24/36-volt model with a current limit of 500 amperes and utilizes a 5K-0 ohms throttle input. It weighs 2.7 kg and is 225 mm in length, 146 mm in width, and 70 mm in depth. The controller provides a better driving experience due to embedded features and optional features offered, which can be added according to the preference and demands of the desired application.

The controller can now be purchased here in Cloud Electric, your one-stop shop for all your electric component needs. Cloud Electric is a leading distributor of electronic components in North America. We take pride in our informative product descriptions, pricing, and shipping speed.

SPECIFICATIONS

NOMINAL VOLTAGE	24-36 V
CURRENT LIMIT	500 A
STANDBY CURRENT	20 mA
OPERATING FREQUENCY	15 kHz
TEMPERATURE RANGE DURING OPERATION	-25°C to 75°C
THROTTLE INPUT	5K-0 ohms

PHYSICAL SPECIFICATIONS

WEIGHT	2.7 kg
DIMENSION
Length	225 mm
Width	146 mm
Depth	70 mm

INSTALLATION

Curtis provides a simple wiring procedure in its motor control products so that you can fit it in your vehicle conveniently. These external components are needed along with this electric motor controller. The list is given below

Main contactor
Forward/Reverse contactors
Forward/Reverse switches
Key switch
Polarity protection diode
Control wiring fuse
Power wiring fuse

The detailed directions to install the Curtis 1204 electric motor controller is available in the instruction manual with illustrations, relevant figures, and wiring diagrams.

KEY FEATURES

Feature	Purpose
Brake Control and Variable Drive Speed	Allows accurate vehicle control for an improved driving experience
Power MOSFET	Highly efficient and noiseless operation
Protection and Compensation Circuit for Temperature	Allows stable current limit and cutback function for during under and over temperature condition
Cutback Function (Undervoltage)	Provides protection from low battery voltage (internal and/or external)
Pot Fault Protection	Prevents runaway conditions
Easy Installation	No further alterations
Tin-plating (Bus Bars)	Protection for solid copper bus bars
Push-in Connectors	Allows control wiring

OPTIONAL FEATURES

High Pedal Disable: Allows a safe start by monitoring the status of the throttle. If the vehicle is started with an applied throttle, this feature disables it from operating until the throttle is returned to the neutral position
