Curtis 60/72V 400A Programmable PMC 1205M6B403

Cross Reference:

CL7011311, CT1205M-6B403, HU4127571, YP550117347, YP5501173-47
7011311, 1205M-6B403, 4127571, 550117347, 5501173-47

Please select the preferred condition for Curtis 60/72V 400A Programmable PMC 1205M6B403 if options are available.

Remanufactured OEM Curtis 60/72V 400A Programmable PMC 1205M6B403 will ship to your location in 1-3 days. Stock rebuilt items will generally ship same day unless prior testing is required. All rebuilt items are subjected to a core charge. The core charge will be refunded once we receive the core in one of our warehouse locations.

Repair Service for Curtis 60/72V 400A Programmable PMC 1205M6B403 will include a complementary pick up from anywhere in USA (48 contiguous states). We can schedule a pick up the same day of order. The repair process typically takes 3-5 business days. But can be completed sooner if parts are readily available. (this is usually the case for top selling items)

For more information, please call us at 1844-808-5280. This unit comes with 6 Months warranty up-gradable to 36 months.

PRODUCT DESCRIPTION

The Curtis 1205M-6B403 is a MOSFET power and microprocessor-based controller that is fully programmable and operates as a controller for DC series motors. Due to this controller model, the Curtis family of series motor controllers has expanded as it now caters to pump duties and on-vehicle traction applications. The design is applicable to a wide range of hydrostatic and electric traction such as golf carts and industrial trucks.

The Curtis 1205M-6B403 is a 60/72-volt model with 400 amperes current limit. It weighs 2.7 kg and is 199 mm in length, 146 mm in width, and 77 mm in depth. It provides a better driving experience due to embedded features and optional features offered, which can be added according to the preference and demands of the desired application.

The controller can now be purchased here in Cloud Electric, your one-stop shop for all your electric component needs. Cloud Electric is a leading distributor of electronic components in North America. We take pride in our informative product descriptions, pricing, and shipping speed.

SPECIFICATIONS

NOMINAL VOLTAGE	60-72 V
MINIMUM ELECTRICAL ISOLATION	Due to Heatsink, 500 VAC
INPUT CURRENT (KSI)	W/o Programmer: 70 mA W/ Programmer: 130 mA
INPUT CURRENT (LOGIC)	Less than 2 mA
PEAK OUTPUT CURRENT (STATUS LED)	Less than 2 mA
CURRENT LIMIT	400 A
CURRENT RATING
1 Minute	400 A
5 Minute	275 A
1 Hour	175 A
OPERATING FREQUENCY	15.6 kHz
TEMPERATURE
Ambient (Storage)	-40°C to 85°C
Ambient (Operational)	-40°C to 50°C
THROTTLE TYPE	ITS Throttle

PHYSICAL SPECIFICATIONS

WEIGHT	2.7 kg
DIMENSION
Length	199 mm
Width	146 mm
Depth	77 mm

FEATURES

Feature	Purpose
Power MOSFET	Highly efficient and noiseless operation
Plating (Bus Bars)	Protection for solid copper bus bars
Protection and Compensation Circuit for Temperature	Allows stable current limit and cutback function for during under and over temperature condition
Circuitry for Fault Detection	Helps in preventing controller functions when throttle wires are open
Cutback Function (Undervoltage)	Provides protection from low battery voltage (internal and/or external)
Throttle Options	The universal logic board allows the use of various throttle and allows HPD feature
High Pedal Disable	Allows a safe start by monitoring the status of the throttle. If the vehicle is started with an applied throttle, this feature disables it from operating until the throttle is returned to the neutral position
Easy Installation	No further alterations are necessary
IP54	Ingress Protection (IP) rating that protects the controller from the rugged environment

ACCESSORIES COMPATIBLE WITH CURTIS 1205M-4601

Curtis 906 - a battery fuel gauge that guarantees reliability and precision. It also displays comprehensive output and an easy-to-install accessory.
Curtis Pot Box - gives the throttle enough resistance where one can specify speed
Curtis 1313 - a programmer that assists in parameter control and system diagnostics.

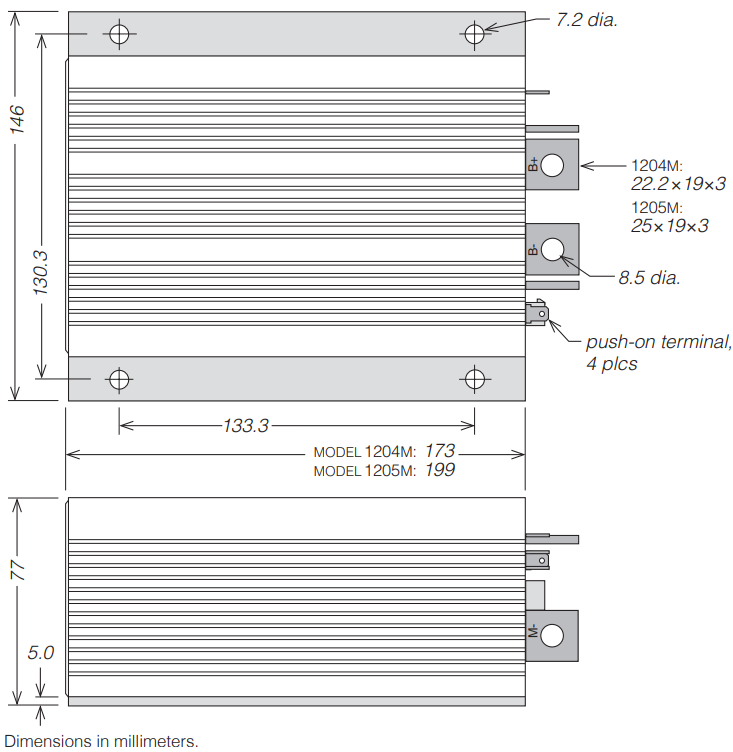

DIMENSIONS

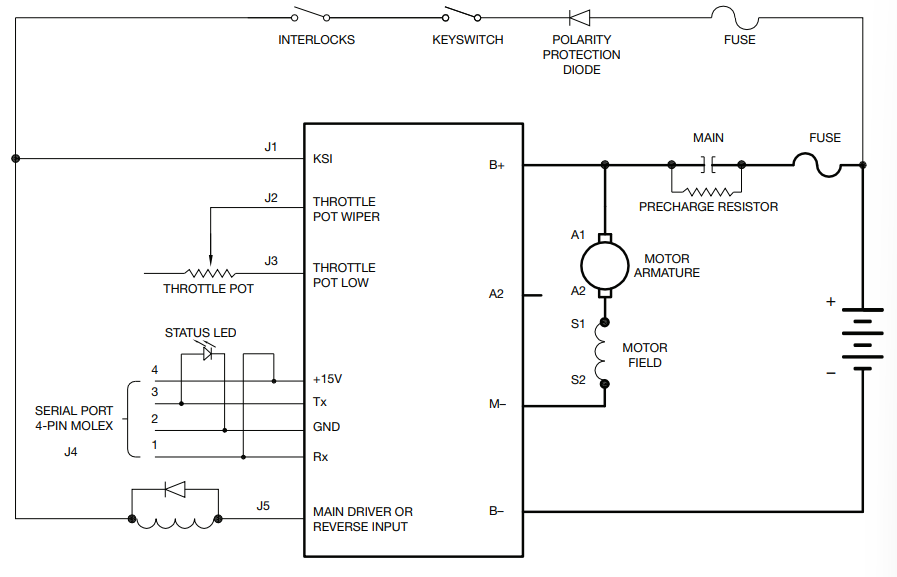

WIRING DIAGRAM

Wiring Diagram for Traction

Wiring Diagram for Pump
